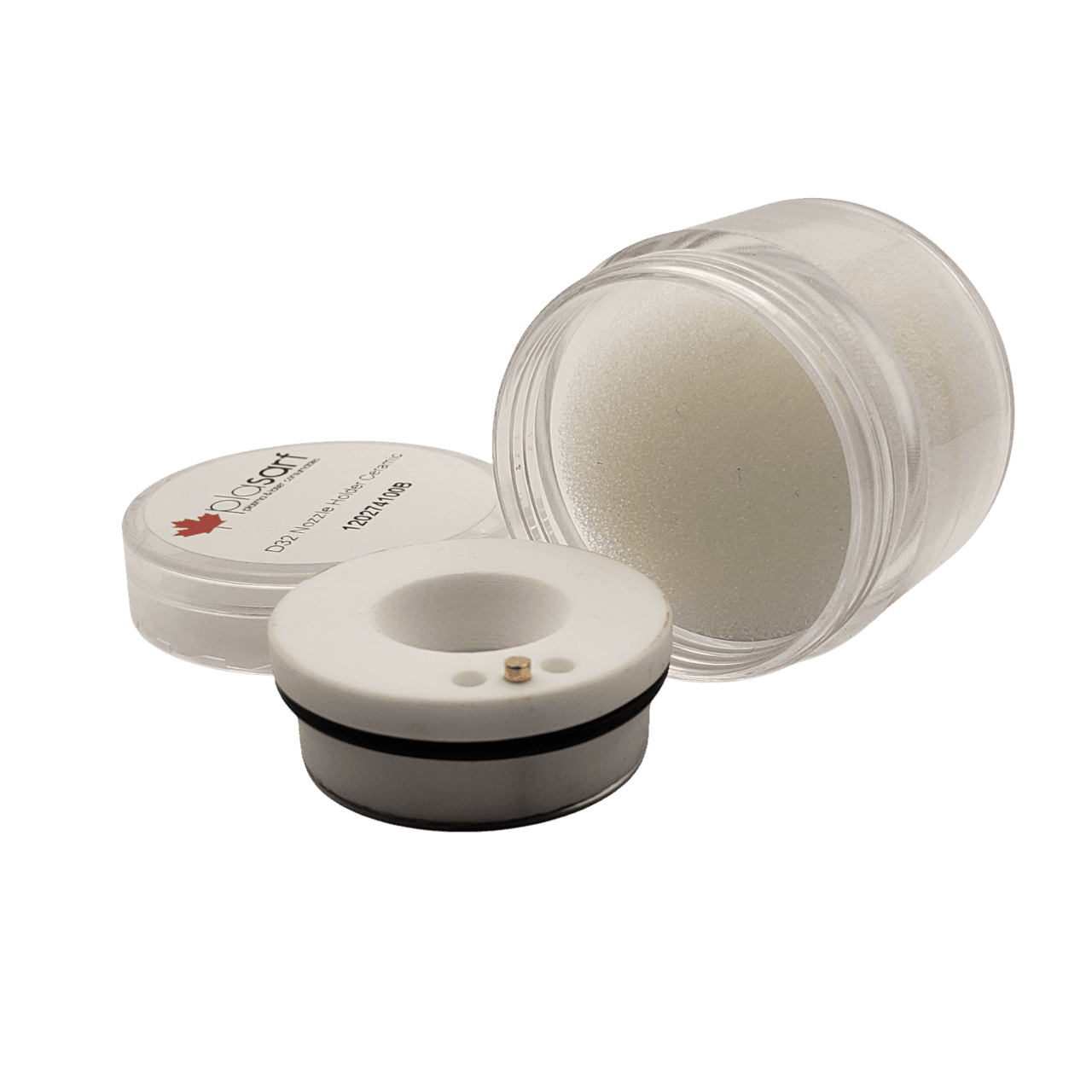

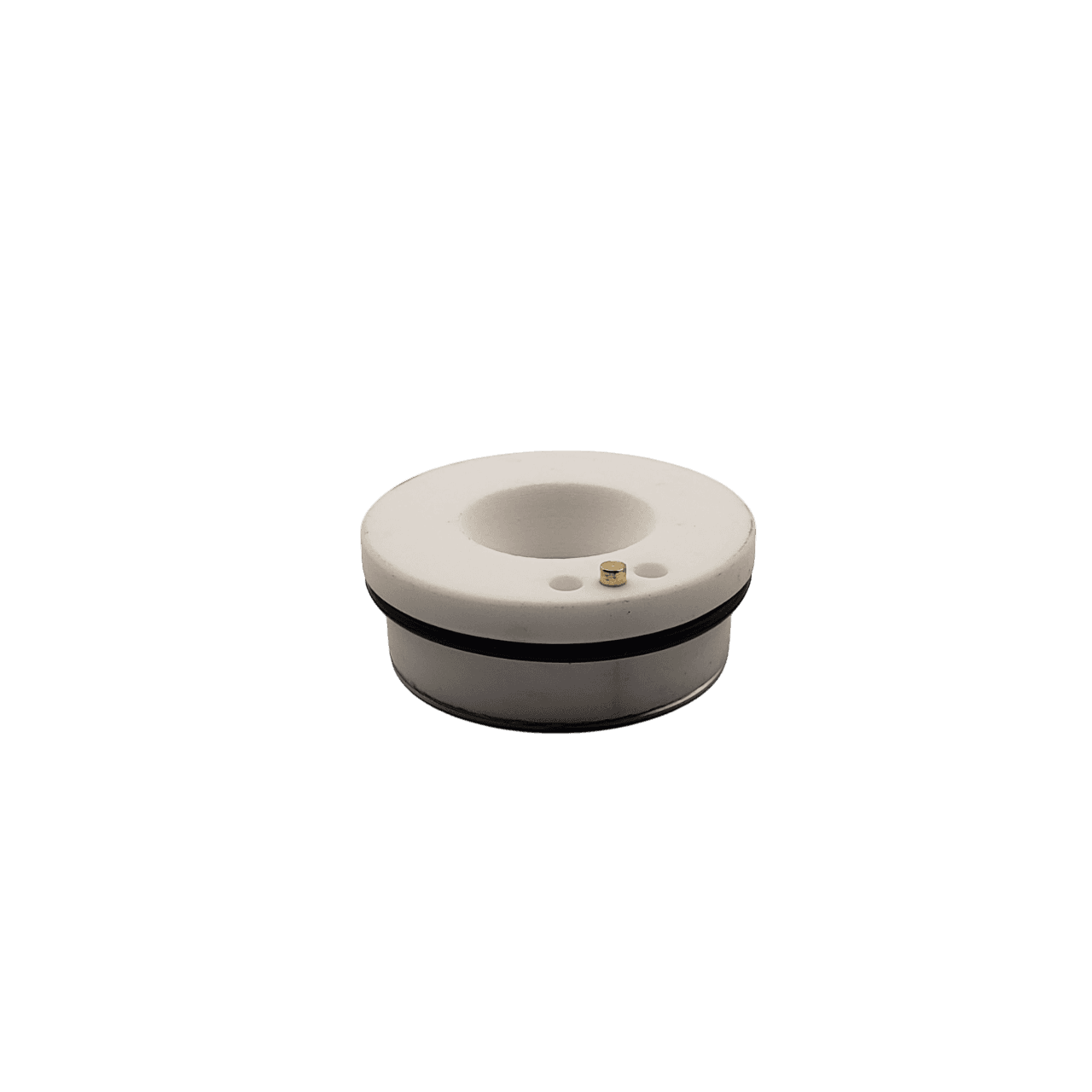

D32 H12 M14 Ceramic Nozzle Holder Raytools Bodor Fiber Laser Cutting Head USA Material 120274100B

120274100b — d32 h12 m14 ceramic nozzle holder for raytools / bodor fiber laser cutting heads. made from high-strength usa ceramic to keep the nozzle rigid, protect the cutting head and maintain stable assist-gas flow at production speeds. use as a direct replacement for worn holders to restore cut quality and process stability.

size:

• model: d32 h12 m14 ceramic nozzle holder plasarf original
• body diameter: d32 mm
• height: h12 mm
• thread: m14 (raytools / bodor-type interface)
• quantity: 1 × ceramic nozzle holder

spec:

• designed for fiber laser cutting heads that use d32 h12 m14 threaded ceramic holders
• centers and supports the cutting nozzle in front of the focus lens
• built for stable assist-gas flow and repeatable nozzle positioning in daily production
• suitable for fiber laser cutting systems in the 1–20 kw range (follow your machine specs)

material:

• high-strength technical ceramic — usa material
• good thermal shock resistance and electrical insulation
• durable surface to handle frequent nozzle changes and clamping

use:

• holds and aligns the cutting nozzle on raytools / bodor-type fiber laser heads
• helps keep gas flow coaxial with the beam for clean kerfs and reliable piercing
• suitable for everyday sheet-metal cutting applications and production environments

compatibility:

• raytools / bodor heads that specify a d32 h12 m14 ceramic nozzle holder
• reference: 120274100b
• commonly used on 1–20 kw fiber laser cutting machines
• always compare with your original holder (diameter, thread and seat shape) before ordering

quality:

• each ceramic holder checked for thread accuracy and flatness
• clean contact faces for secure mounting and stable alignment
• individually packed to reduce the risk of chips or cracks in transit
