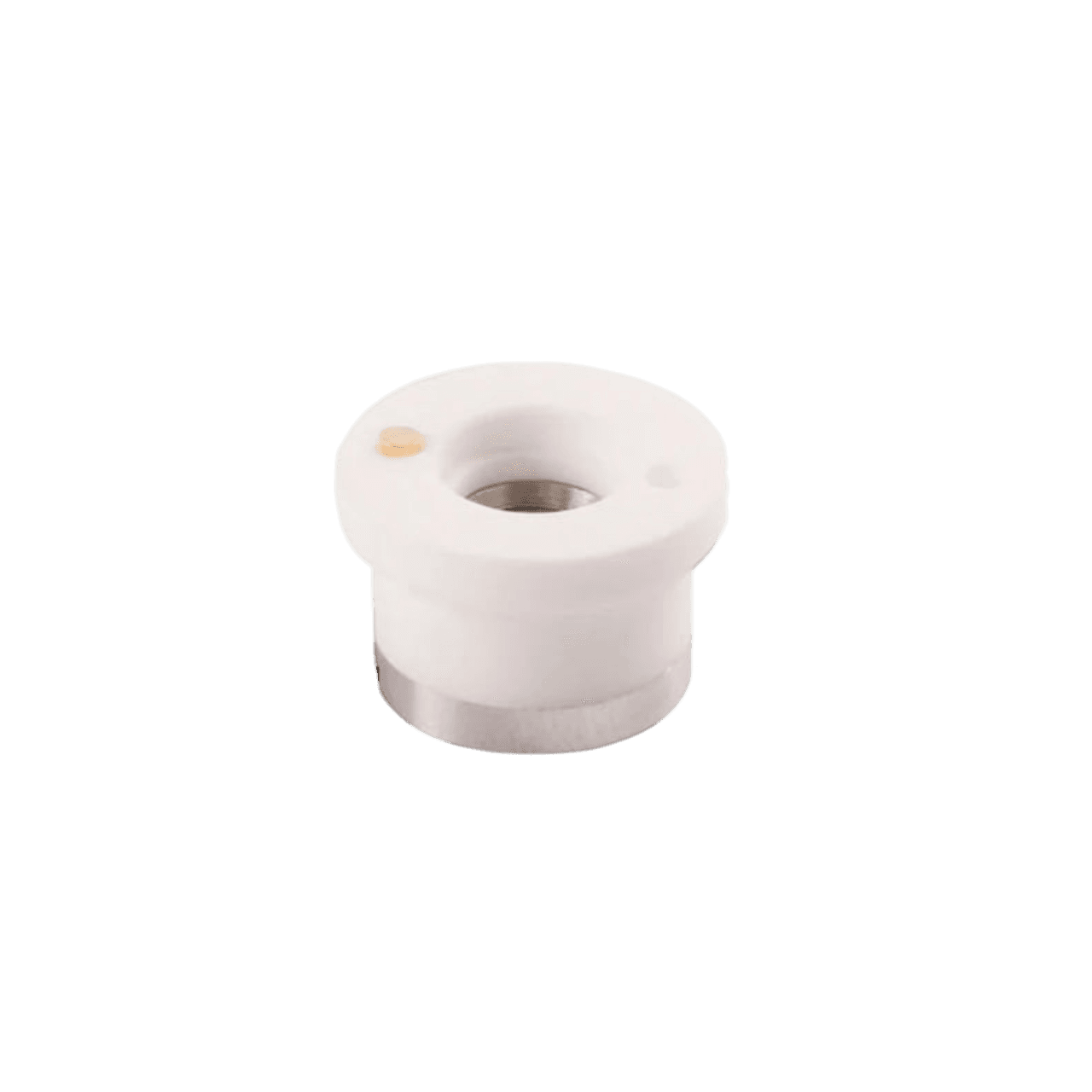

ceramic nozzle holder (raytools 3d) d19.5 h12.4 m8 for fiber laser - usa material

raytools 3d / hsg wtc-04 3d ceramic nozzle holder in d19.5 mm × h12.4 mm with m8 thread for industrial fiber laser cutting heads. this compact 3d-style ceramic holder provides stable nozzle support, accurate positioning and reliable electrical insulation for consistent cutting performance. built from technical ceramic for dependable daily production and repeatable results.

size:

• form factor: raytools 3d / hsg wtc-04 3d ceramic nozzle holder

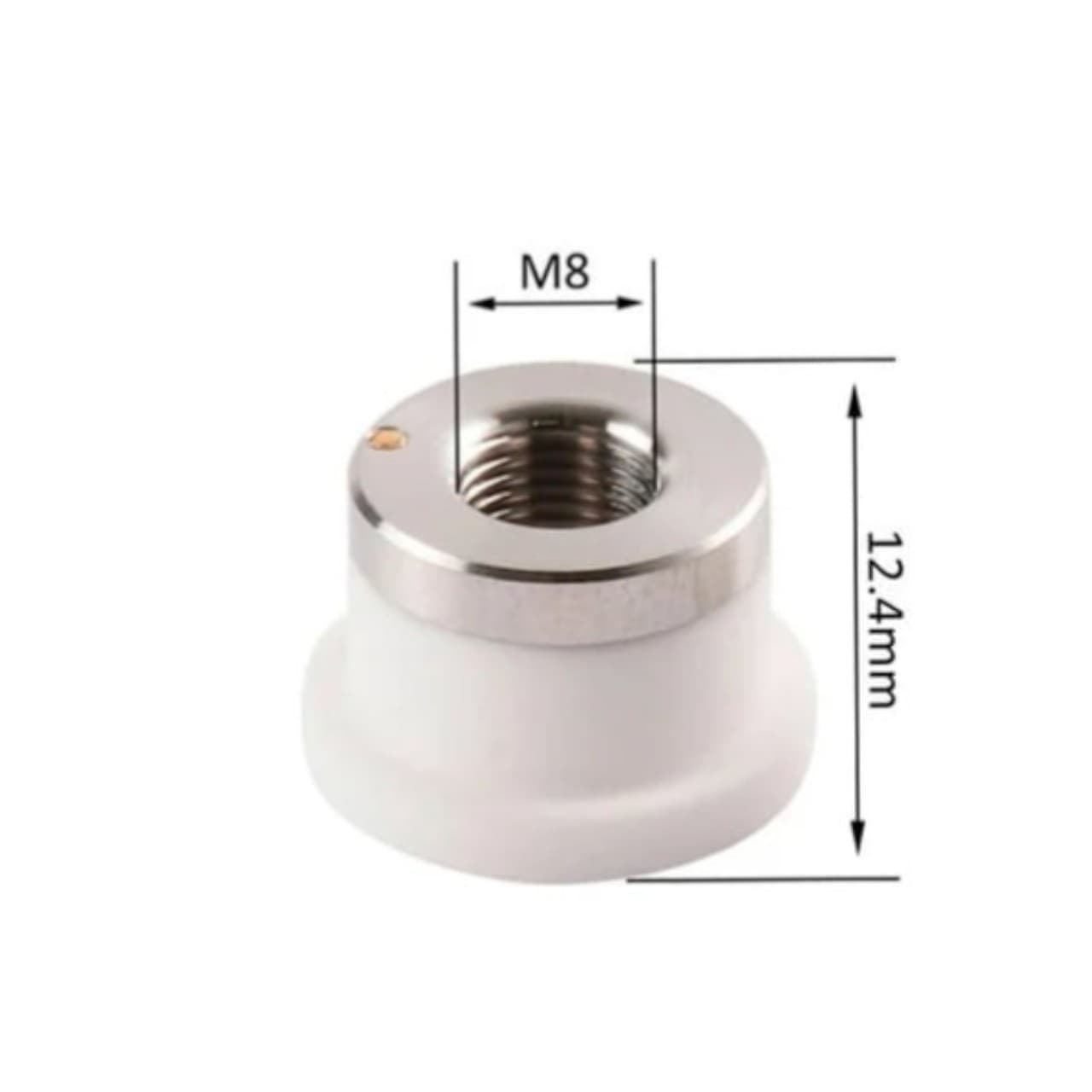

• dimensions: d19.5 mm × h12.4 mm

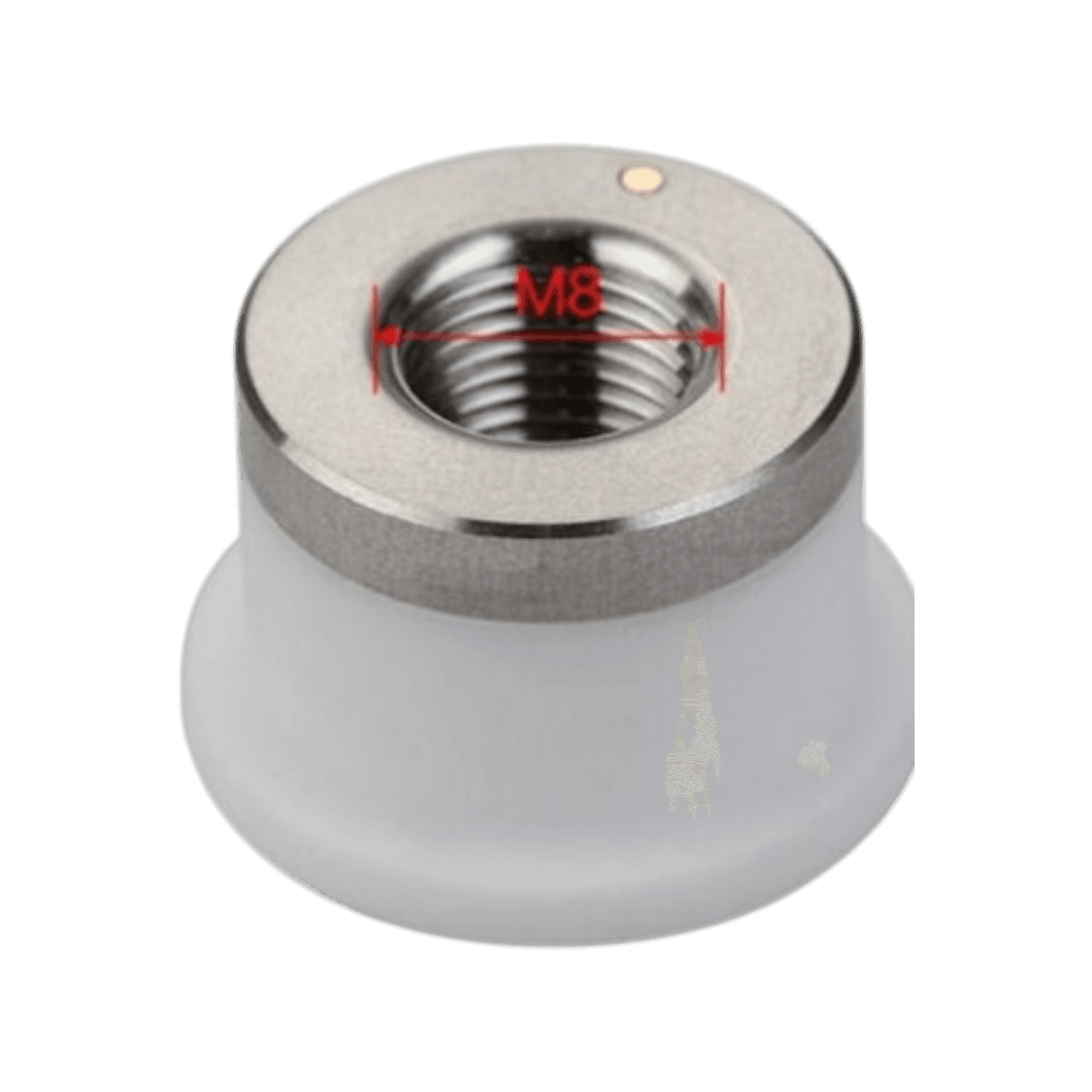

• thread: m8
• material type: technical ceramic
• geometry: compact 3d-style ceramic holder per head specification
• function: supports and centers the cutting nozzle while insulating the nozzle assembly
• quantity: 1 × ceramic nozzle holder

spec:

• provides electrical insulation between nozzle assembly and head body
• stable seating for the nozzle and reliable gas sealing
• compact 3d-style design for precise nozzle positioning
• supports consistent stand-off and assist-gas flow during production

material:

• technical ceramic construction
• durable and low-wear surface
• good thermal resistance for repeated cutting cycles

use:

• designed for raytools 3d and hsg wtc-04 style fiber laser cutting head setups
• helps maintain nozzle alignment and stable cutting-head performance
• suitable for routine sheet-metal cutting and continuous production environments

compatibility:

• suitable for raytools 3d cutting heads and compatible setups using this ceramic specification
• commonly associated with bt240, bmh109, bmh110, bmh111, bmh114 and gf101 head families
• always verify your original holder dimensions, thread and seating geometry before ordering

quality:

• each ceramic holder checked for critical fit and seating surfaces
• clean, chip-free edges for secure installation and reliable sealing
• individually packed to reduce the risk of cracks or transport damage
