D20.6 Ceramic Ring Bodor 3D 6KW Fiber Laser Cutting Head USA Material

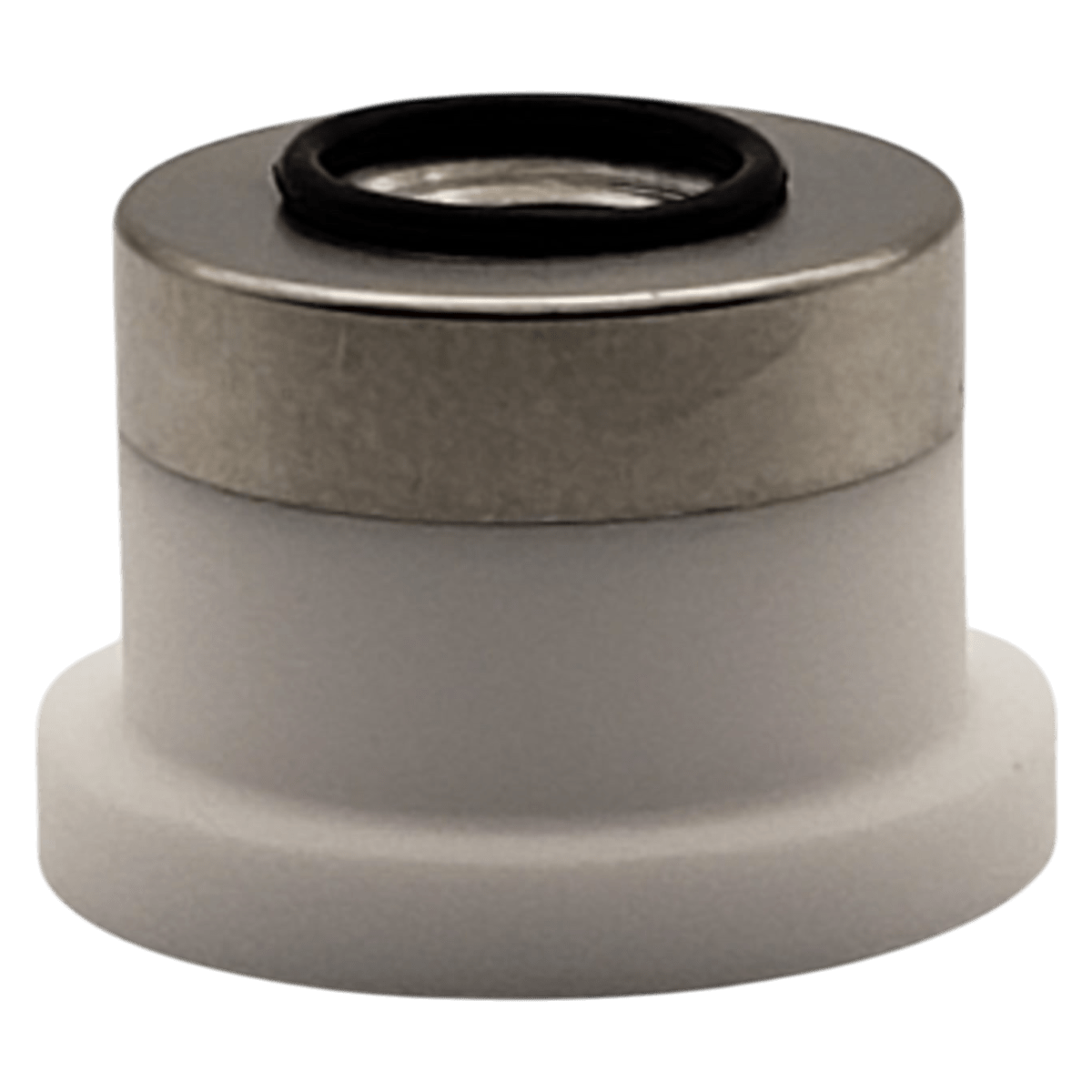

d20.6 ceramic ring for bodor 3d fiber laser cutting heads on systems up to 6 kw. holds and aligns the cutting nozzle while electrically isolating it from the head body, so the capacitive height sensor reads the material surface correctly. designed for tube, pipe and profile cutting applications.

size:

• ceramic ring outer diameter: d20.6 mm
• type: 3d ceramic ring for tube and profile cutting heads
• quantity: 1 × ceramic ring

spec:

• insulating ceramic body for stable capacitive height sensing
• machined seat for accurate nozzle centering and gas sealing
• rated for cutting heads running up to 6 kw
• confirm your original ring diameter, pin layout and seat height before ordering

material:

• usa-sourced technical ceramic
• high dielectric strength for reliable electrical isolation
• heat and spatter resistant for continuous production cutting

use:

• nozzle seat and insulator on bodor 3d fiber laser cutting heads
• keeps the nozzle concentric to the beam for consistent kerf quality
• replace when cracked, chipped or when height sensing becomes unstable

compatibility:

• compatible with bodor 3d fiber laser cutting heads using d20.6 ceramic rings
• nozzle thread must match your existing nozzle stock
• always compare your original part number, pin position and mounting style before ordering

quality:

• each ceramic ring visually checked for cracks and chips before packing
• clean contact surfaces and stable seat fit for replacement use
• suitable for industrial spare-parts stock and daily production support

included:

• 1 × d20.6 bodor 3d ceramic ring

shipping:

• packed in protective foam to prevent chipping during transport
• ceramic parts are brittle — protect from impact before installation
