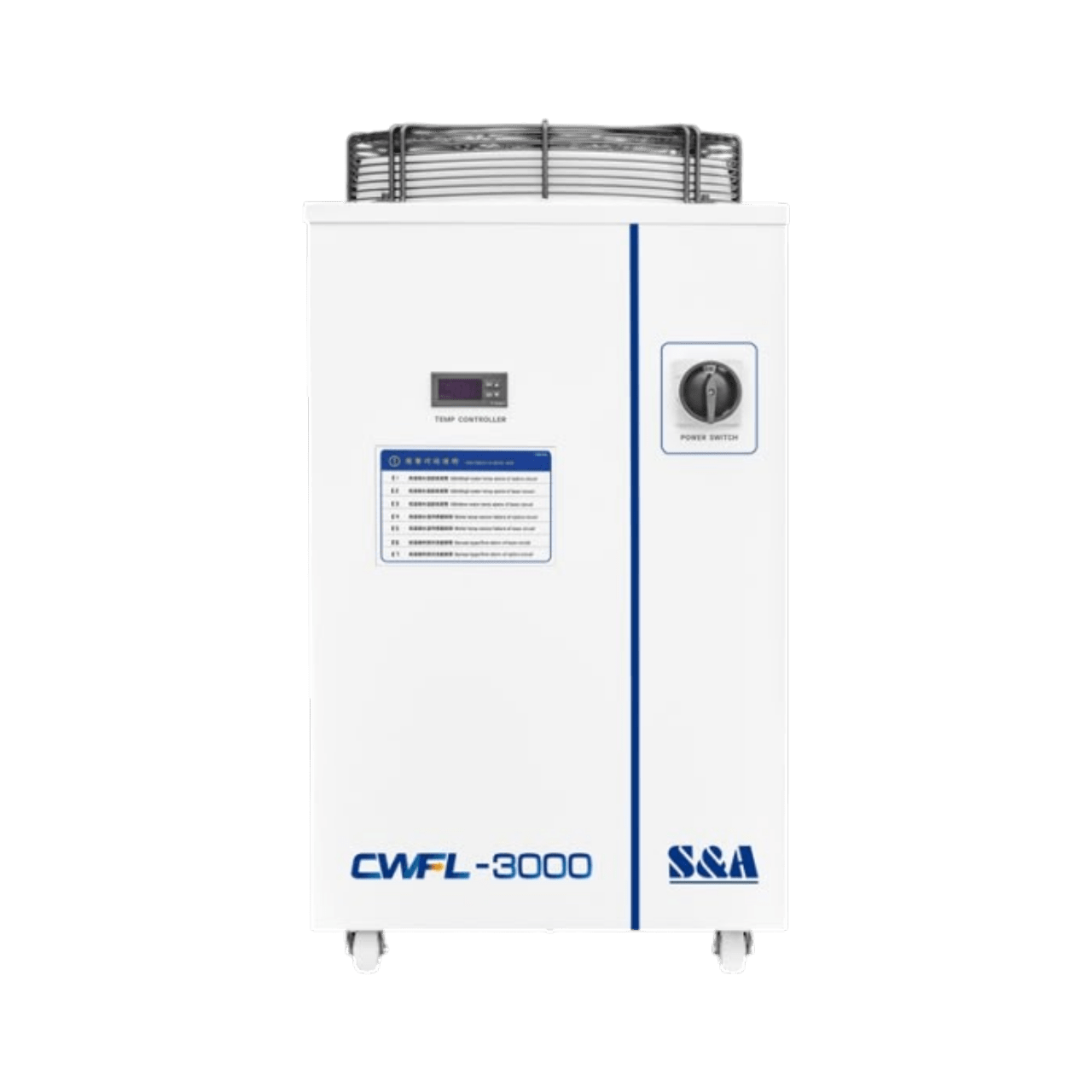

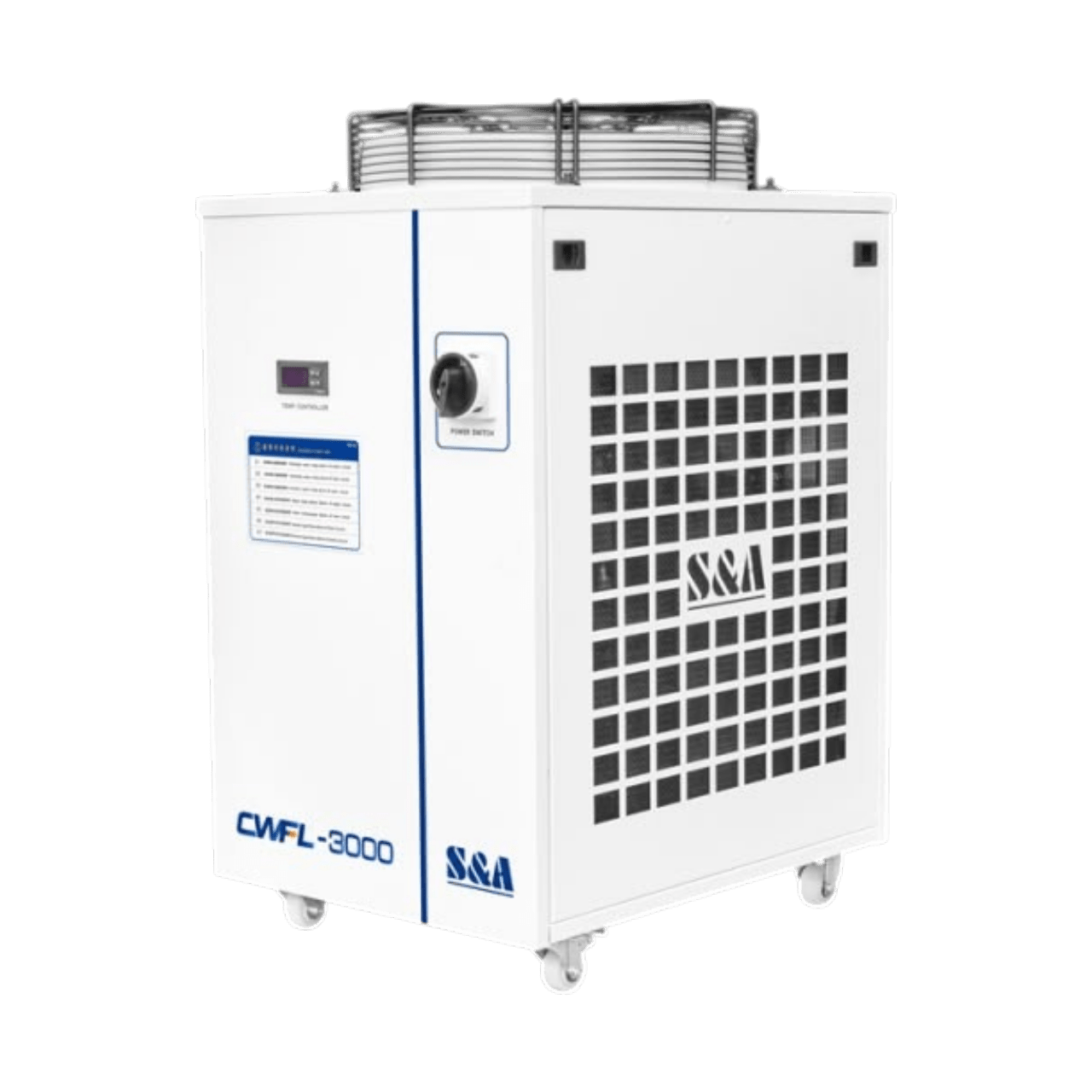

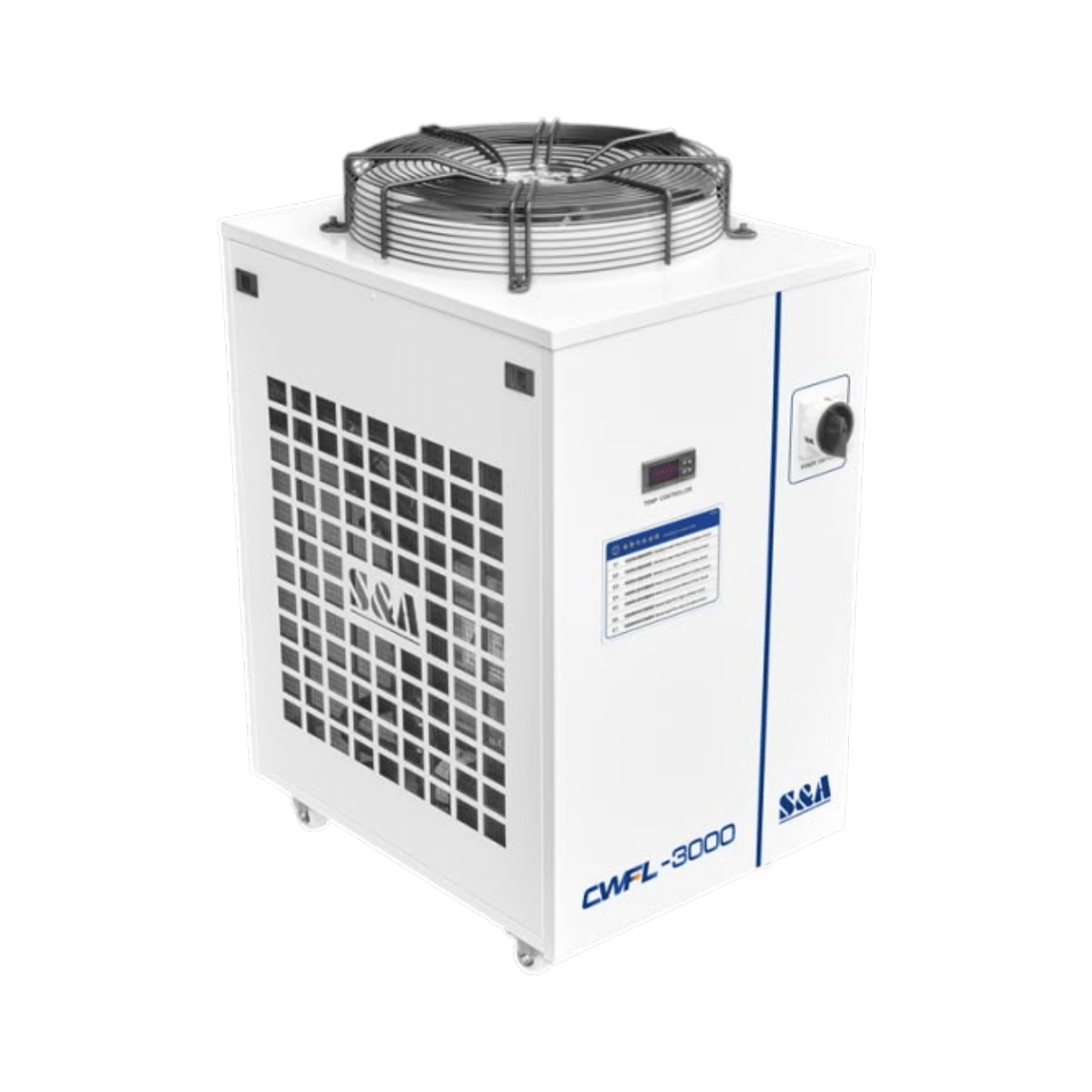

CWFL-3000ANS04 Industrial Water Chiller for Fiber Laser 3000W

the cwfl-3000ans04 is an industrial water chiller designed for fiber laser cooling applications. by cooling the laser device, it keeps laser output power stable and ensures light beam quality, improving both the working life and cutting accuracy of the laser device. equipped with dual temp control, overcurrent protection for the compressor, and comprehensive alarm systems, it delivers reliable, energy-efficient cooling performance for 3000w-class fiber laser systems.

spec:

• machine model: cwfl-3000ans04
• voltage: ac 1p 220-240v
• frequency: 50hz
• current: 2.3-14.4a
• max power consumption: 3.26 kw
• heater power: 0.8 kw
• precision: ±1°c
• reducer: capillary
• pump power: 0.48 kw
• tank capacity: 22 l
• inlet and outlet: rp1/2" + rp1/2"
• max pump pressure: 43 m
• rated flow: 1.5 l/min + >25 l/min
• net weight: 58 kg
• gross weight: 69 kg
• dimension: 69 x 47 x 90 cm (l x w x h)
• package dimension: 73 x 57 x 105 cm (l x w x h)

structure:

• capillary-based temperature reducer for precise cooling control
• dual temp control system for stable operating temperature
• built-in pump with 43m max pressure for reliable water circulation
• compact tank design with 22l capacity

use:

• application: cooling fiber laser devices to maintain stable output power and consistent beam quality
• compatibility: suitable for 3000w-class fiber laser resonators
• benefit: improves working life and cutting accuracy of the connected laser device

quality:

• energy saving design for efficient power consumption
• overcurrent protection for compressor to prevent damage
• over temp alarm and flow alarm for operational safety
• dual temp control for consistent cooling precision

included:

• 1 x cwfl-3000ans04 industrial water chiller
