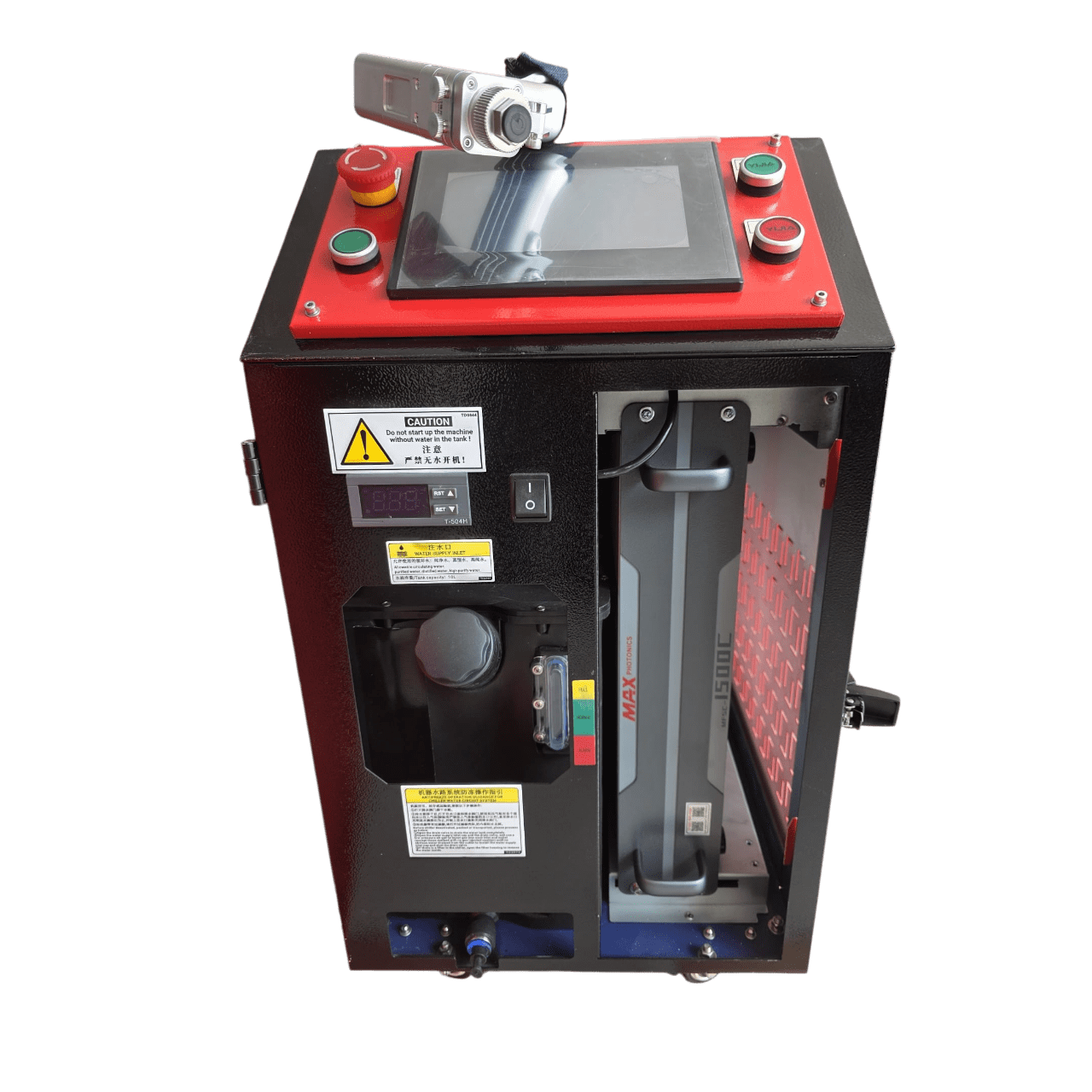

PW-D Series Dual Wire Laser Welding Machine 2000W

the pw-d series dual wire laser welding machine is a versatile 4-in-1 system designed for high-efficiency metal fabrication. powered by a 2000w raycus resonator, it features the sup 23t handheld laser head that supports welding, surface cleaning, cutting, and weld seam cleaning. it offers an effective welding thickness of 0.3 to 6 mm, with optimal penetration up to 8 mm for specific steel applications, delivering smooth and clean finishes without the need for pre-welding preparation. equipped with an s&a 2000w chiller, a flexible 5 to 10-meter fiber cable, and a dual wire feeder, it provides exceptional maneuverability and enhanced gap-bridging capabilities for wider seams.

spec:

• machine model: pw-d series 2000w
• rated output power: 2000 w
• laser source: raycus resonator
• laser wavelength: 1080 nm ± 5 nm
• welding head: sup 23t 4-in-1 handheld laser head
• head weight: 0.75 kg
• effective welding thickness: 0.3 - 6 mm
• fiber cable length: 5 - 10 m
• cooling mode: water cooling
• operating voltage: ac380v, 50hz & 60hz
• protective gas: nitrogen (purity not less than 99.9%)
• overall dimension: 750 × 520 × 980 mm
• net weight: 102 kg

structure:

• integrated s&a 2000w water chiller for stable long-term performance
• sup 23t ergonomic handheld laser gun weighing only 0.75 kg with 4-in-1 functionality
• built-in optical components including a d18.2 protective lens, d20 ct4.5 f150 focusing lens, and d16.5 f60 collimating lens
• red light positioning system for accurate aiming
• continuous or pulse working modes
• dual weaving filler wire device included for wider gap requirements and reinforced weld seams

use:

• materials: suitable for stainless steel and carbon steel efficiently up to 6 mm (and up to 8 mm under optimal conditions), as well as very thin materials under 1 mm
• applications: ideal for overhead or vertical workpieces, hard-to-reach areas, and parts with larger fit-up gaps
• operation: direct welding with no pre-preparation, fast welding speeds, a smooth finish, and no need for extra surface cleaning
• safety: highly focused laser beam ensures safe usage with less heat and energy emission, causing little to no damage to the workpiece

quality:

• high depth-to-width welding ratio
• equally efficient for various metals

included:

• 1 × pw-d series laser welding machine body
• raycus 2000w resonator
• s&a 2000w water chiller
• sup 23t 4-in-1 handheld laser head
• dual wire feeder unit
• control unit
