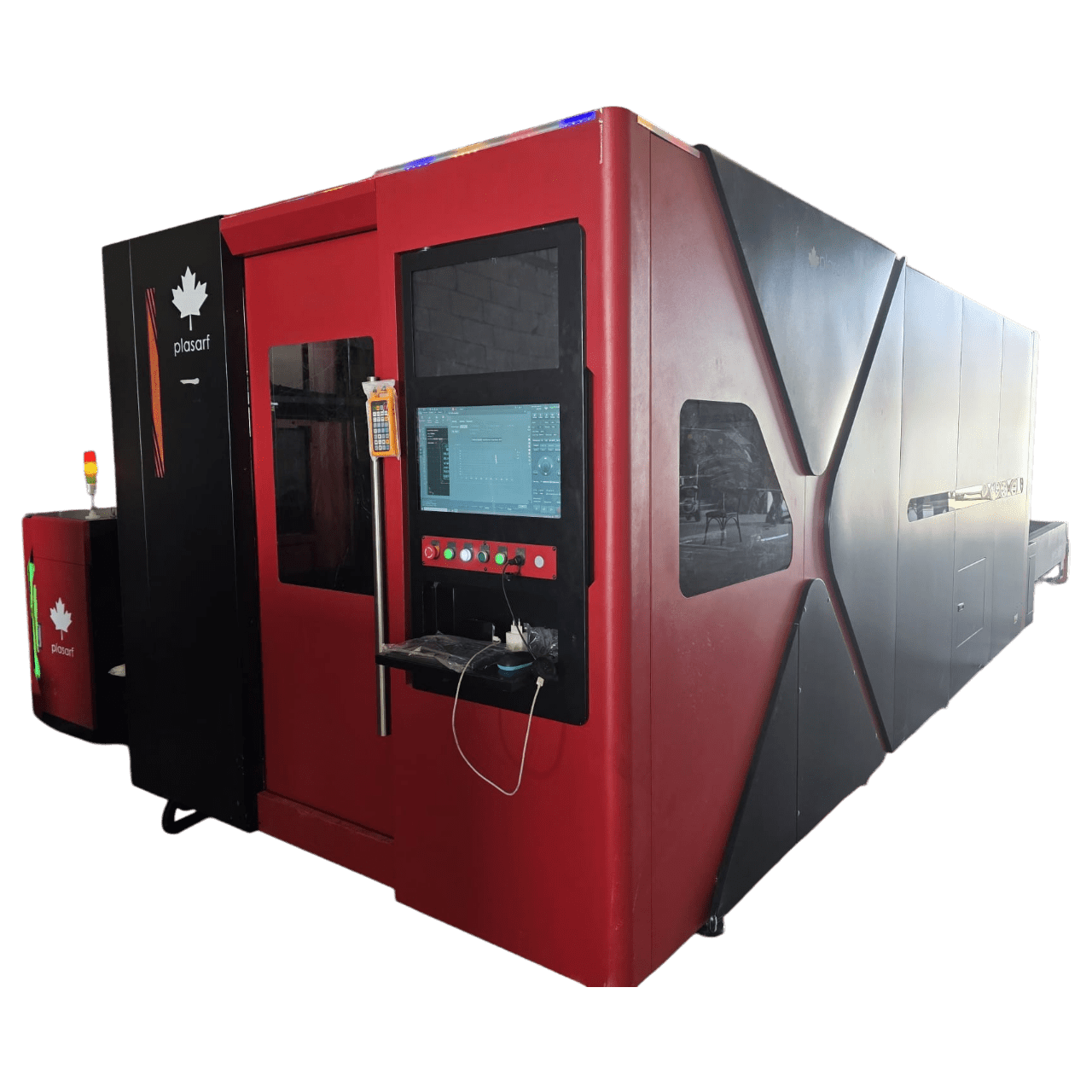

PL-D Series Enclosed Double Exchange Table Fiber Laser Cutting Machine 1500x3000mm 12kW

the pl1530d enclosed double table fiber laser cutting machine is a heavy-duty industrial solution engineered for ultra-fast, high-volume thick plate fabrication. designed with a fully enclosed safety cabin and a double table platform, it isolates dust and laser radiation while ensuring zero loading downtime. powered by a max photonics 12 kw laser source, equipped with the blt442 smart cutting head, controlled by bochu fscut6000 (hypcut) cnc software, and driven by bochu high-precision servo motors with 2400w y1/y2 dual-drive configuration — it represents the pinnacle of high-volume production efficiency.

spec:

• machine model: pl1530d
• working area: 1500 mm × 3000 mm (5 ft × 10 ft)
• x-axis travel: 1500 mm
• y-axis travel: 3000 mm
• z-axis travel: 120 – 300 mm
• laser power: 12 kw
• laser source: max photonics
• cutting head: blt442 auto-focus
• cnc control: bochu fscut6000 (hypcut)
• max. acceleration: 1.2 g – 3.0 g
• max. positioning speed: 100 – 200 m/min
• positioning accuracy: ±0.03 mm/m
• repositioning accuracy: ±0.02 mm/m
• assist gases: oxygen (o2), nitrogen (n2), compressed air (automatic 3-way switching)
• voltage stabilizer: 120 kva
• exhaust fan: 5.5 kw
• machine body weight: 6 t

structure:

• heavy-duty stress-relieved welded steel machine bed for vibration damping and long-term structural alignment
• aviation-grade extruded aluminum gantry for high rigidity, lightweight construction and high-speed dynamics
• fully enclosed protective cabin
• double table system for zero-downtime material loading
• hiwin high-precision linear guide rails
• yyc precision gear rack and pinion for high-torque mechanical transmission
• shimpo high-precision planetary gear reducer
• bochu servo drive system — x-axis: 1700w, y1/y2-axis: 2400w each, z-axis: 750w
• s&a 12 kw dual-temperature industrial water chiller with dedicated cooling circuits for optics and laser source
• schneider low-voltage electrical components for cabinet safety and long-term stability
• airtac pneumatic control valves
• smc 30 bar + smc 10 bar electronic proportional valve for automated assist gas pressure tuning
• integrated 5.5 kw exhaust and dust extraction system
• air conditioner included
• anti-fire bricks included

use:

• carbon steel: ultra-fast cutting on thin and medium sheets and clean perpendicular cut edges on thick plates
• stainless steel and aluminum: high-speed, burr-free cutting using nitrogen or compressed air across thick structural materials
• brass and copper: efficient cutting of heavy reflective metals with anti-reflection protection
• applications: sheet metal fabrication, structural components, machinery manufacturing, automotive parts, signage

quality:

• factory-calibrated using precision laser interferometers prior to delivery for guaranteed positioning accuracy
• manufactured under iso9001 quality management standards
• backed by technical support and after-sales service

included:

• 1 × pl1530d machine body (1500 × 3000 mm, 12 kw)
• laser source, cutting head, chiller and control cabinet
• bochu fscut6000 (hypcut) cnc control system
• oem nesting dongle
