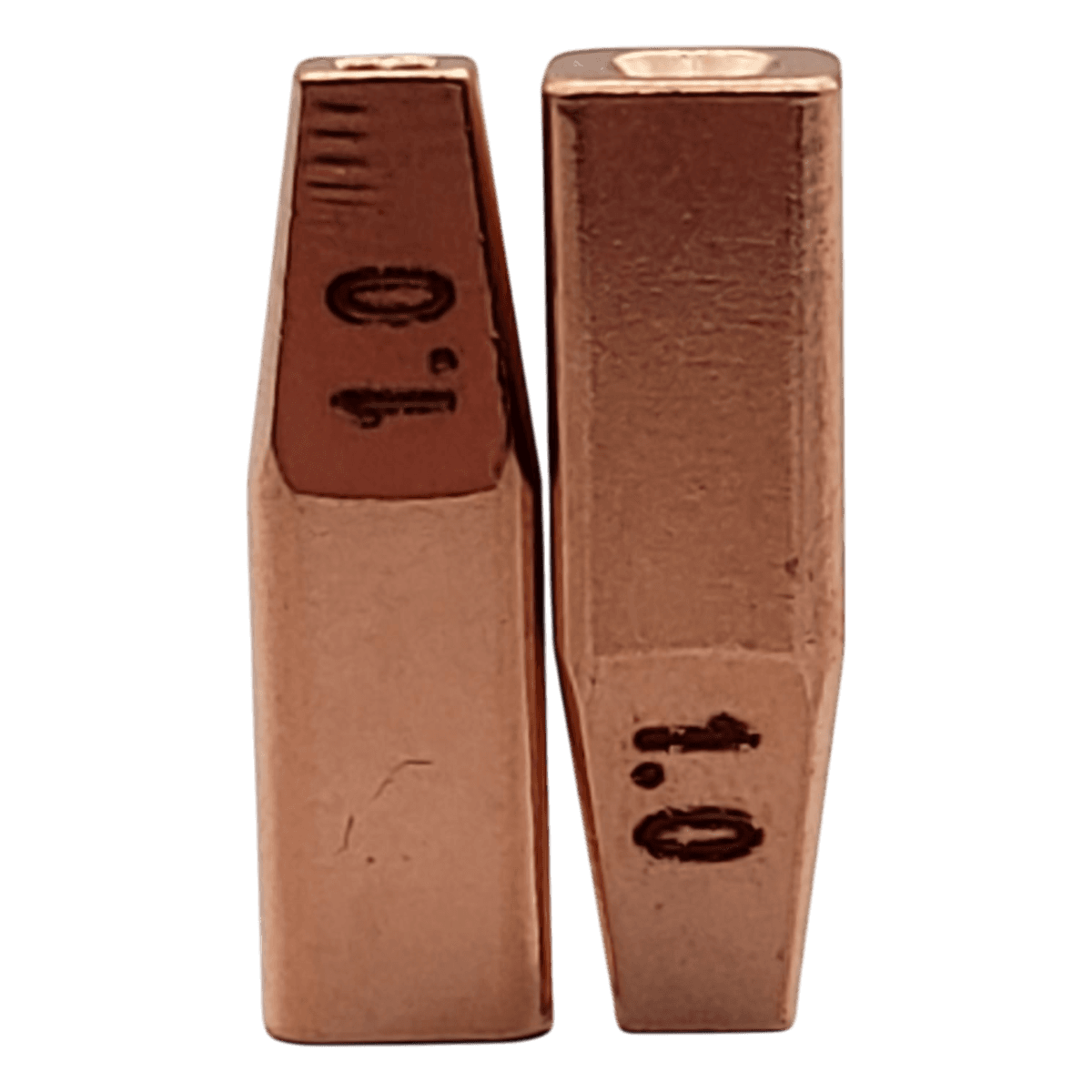

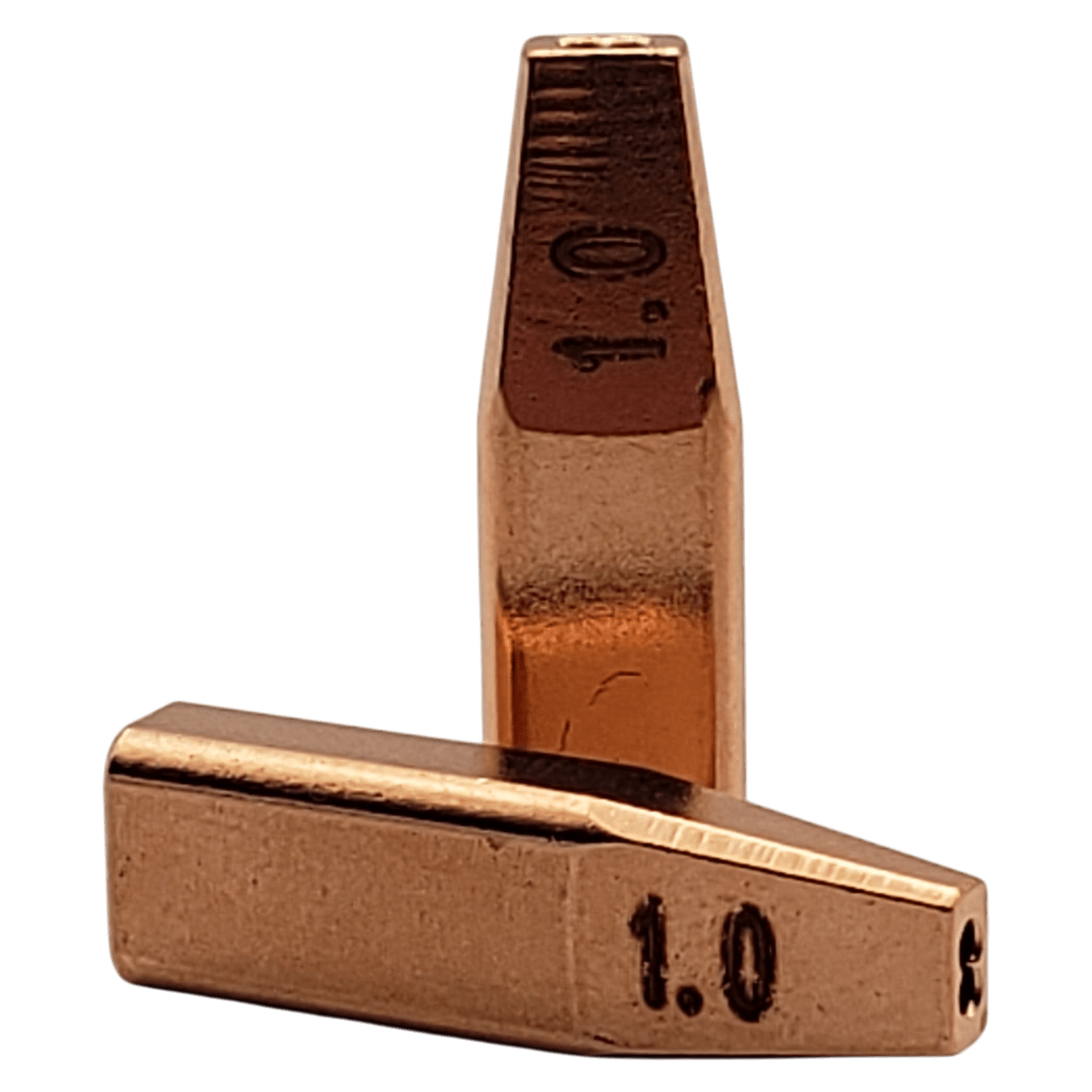

Feed Tip Guideway Double Nozzle Handheld Fiber Laser Welding Wire Feeding

replacement feed tip for guideway type double nozzles on handheld fiber laser welding heads with wire feeding. guides the filler wire into the weld pool and sets the wire exit position relative to the beam. available for 1.0, 1.2 and 1.6 mm welding wire. built for repeatable setups and long service life — plasarf original.

size:

• product type: wire feed tip for guideway double nozzle
• nozzle type: guideway double nozzle
• available wire sizes: 1.0 mm / 1.2 mm / 1.6 mm
• body and thread dimensions: matched to guideway double nozzle bodies

spec:

• feed tip type: guideway double nozzle feed tip plasarf original
• machined bore matched to the selected filler wire diameter
• smooth internal channel to reduce wire drag and feeding interruptions
• threaded seat for guideway type double nozzle bodies
• confirm your wire diameter and nozzle thread before ordering

material:

• precision-machined copper alloy for heat transfer and wear resistance
• machined finish for a stable fit in the nozzle seat
• built for continuous production welding conditions

use:

• wire feeding on handheld fiber laser welding heads
• 1.0 mm: thin sheet and fine seam work with low deposition
• 1.2 mm: general production welding across common material thicknesses
• 1.6 mm: thicker material and higher deposition rates
• replace when the bore wears or wire feeding becomes inconsistent

compatibility:

• fits guideway type double nozzles for handheld fiber laser welding heads
• single nozzle feed tips available separately
• always compare your original feed tip thread and length before ordering

quality:

• each feed tip qc-checked for concentric bore geometry and thread accuracy
• consistent bore size for repeatable wire feeding
• packed in organized trays for safe transport and easy identification
