D20 F125 CT3.6 1090nm Fiber Laser Welding Focus Lens Ospri Type Germany Material

d20 f125 ct3.6 laser welding focus lens for fiber laser welding heads, ospri type. high-precision optic designed for ~1090 nm fiber laser systems, made from germany-sourced fused silica to keep the beam stable and welding seams consistent in daily production.

sold as a single lens — 1 pc per order.

size:

• lens type: welding focus lens for fiber laser welding heads
• lens diameter: d20 mm
• focal length: f125 mm
• center thickness (ct): 3.6 mm

spec:

• wavelength: optimized for ~1090 nm fiber laser systems
• designed for stable spot size, good energy density and consistent weld quality over long runs
• ar-coated surfaces to minimize reflection and power loss

material:

• fused silica optics — germany-sourced material
• low absorption in the 900–1100 nm range to reduce thermal stress
• ar-coated surfaces for minimal reflection and power loss

use:

• for handheld and integrated fiber laser welding systems using d20 lenses
• suitable for general metal fabrication, stainless steel, carbon steel, aluminum and repair welding
• helps maintain a clean, stable welding spot with repeatable results

compatibility:

• fits fiber laser welding heads designed for d20 mm round lenses, ospri type
• always confirm your original lens diameter, focal length (f125) and center thickness (ct3.6 mm) before ordering

quality:

• each lens visually inspected before packing
• controlled curvature, thickness and surface quality for repeatable focus
• clean packaging to reduce contamination risk before installation

included:

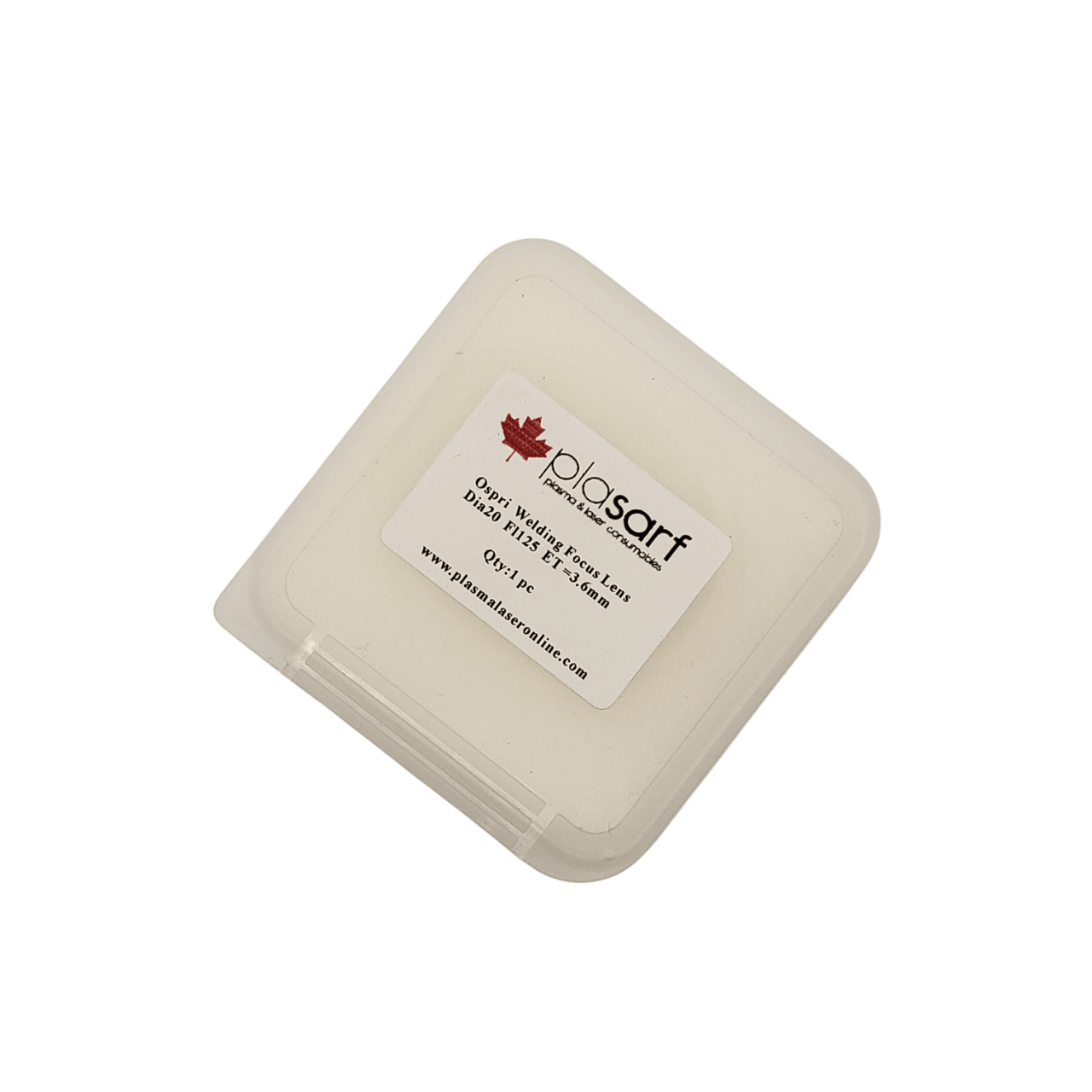

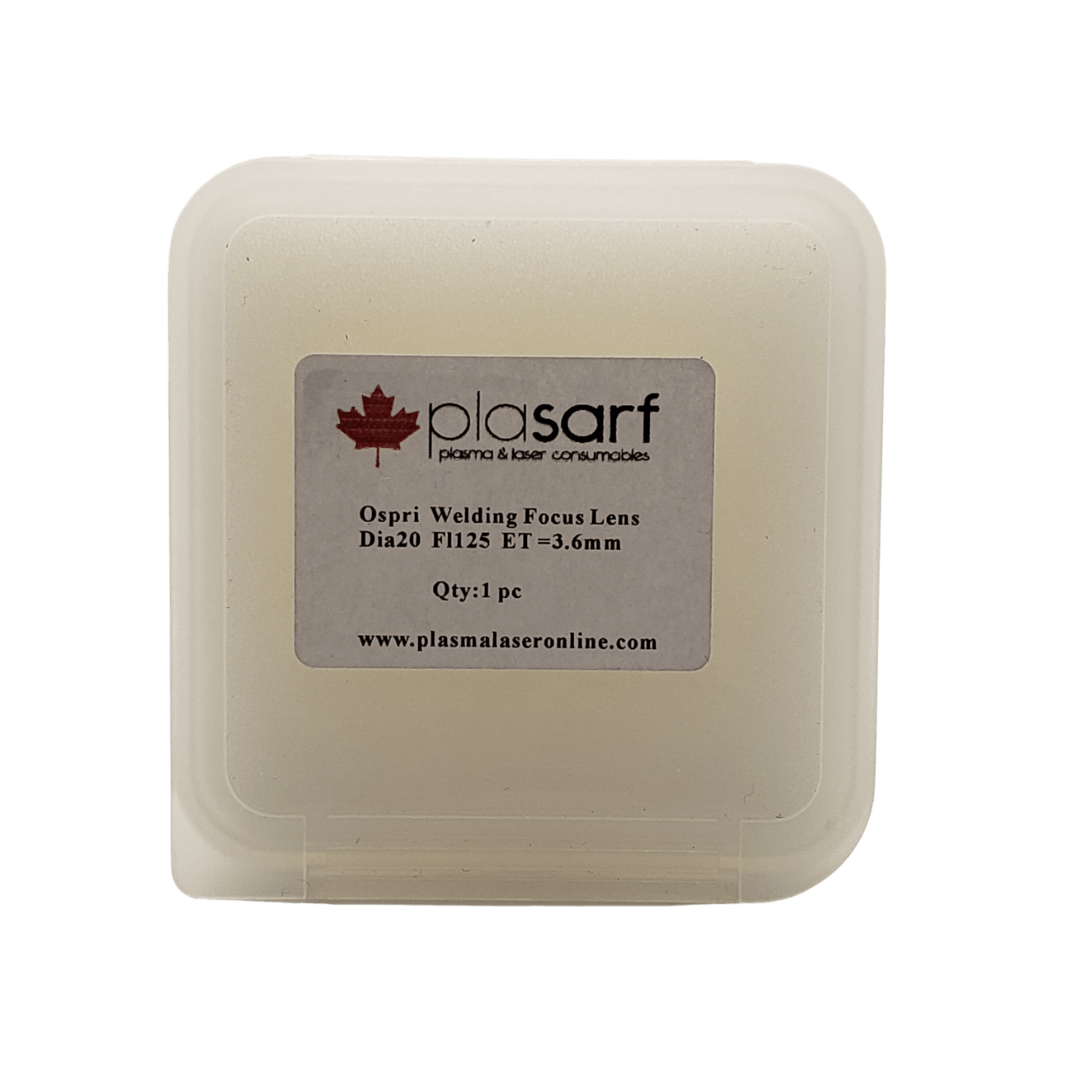

• 1 × d20 f125 ct3.6 mm laser welding focus lens

shipping:

• carefully packed in a protective box to avoid damage in transit
