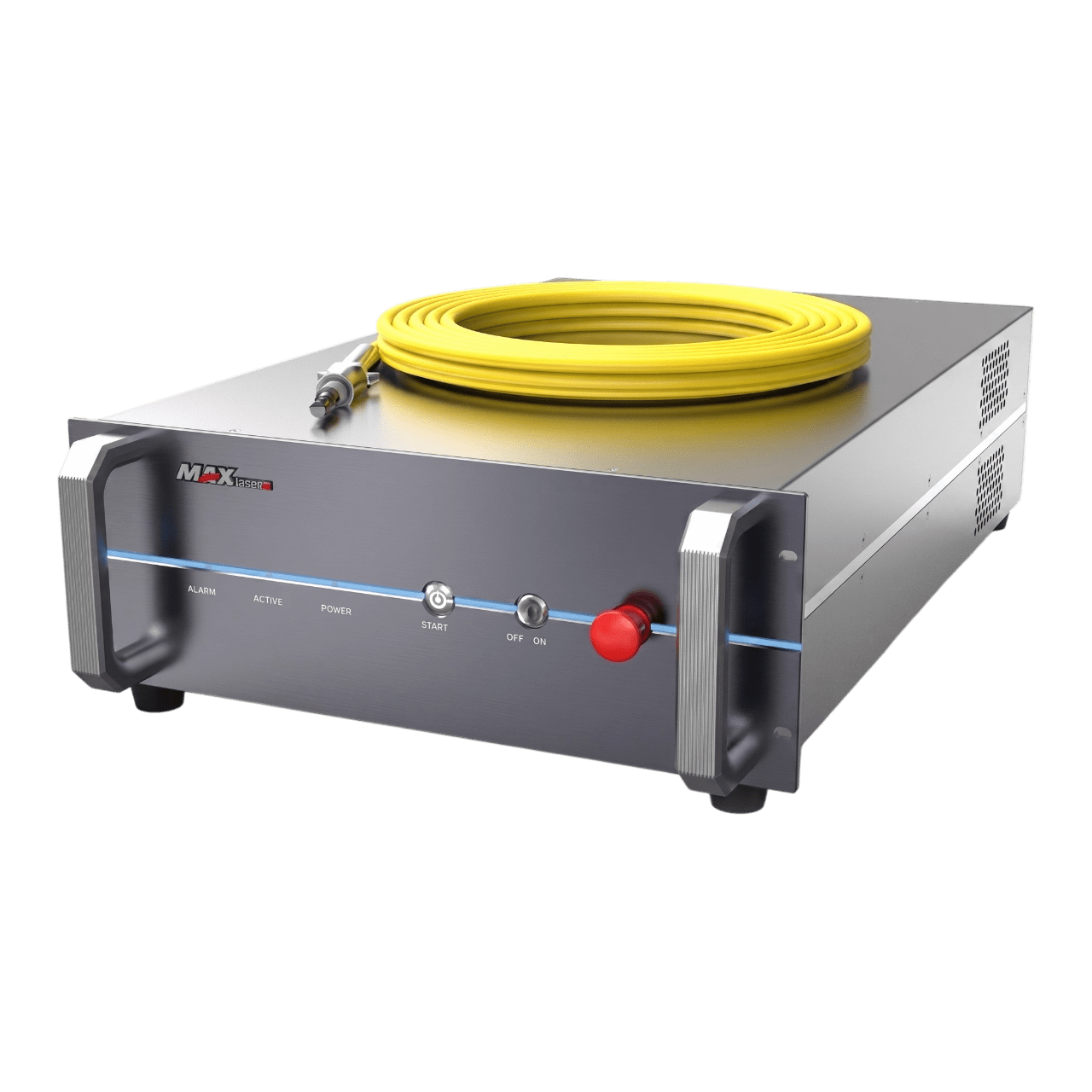

MFSC-3000W Single Module CW Fiber Laser Source 3000W

the mfsc-3000w is a single module continuous wave (cw) fiber laser source engineered for high-precision metal processing applications. delivering 3000w of stable output power with a compact, highly integrated design, it offers superior beam quality compared to multi-module lasers while significantly reducing maintenance requirements and total cost of ownership. built with in-house designed key components and strict quality control, the mfsc-3000w provides consistent, reliable performance for both thin sheet cutting and thick material processing, making it a versatile resonator choice for industrial laser systems.

spec:

• machine model: mfsc-3000w
• mode of operation: cw/modulated
• nominal power: 3000 w
• interface: qbh 4.3
• fiber cable length: 20 m
• fiber diameter: 50 µm

structure:

• single module design delivering output up to 6kw from cw single module series
• better beam quality compared to multi-module lasers
• highly integrated, modular system architecture for maintenance-free operation
• compact footprint with over 60% volume reduction versus previous generations, allowing greater integration flexibility
• all key components designed and manufactured in-house for strict quality control and high consistency

use:

• applications: suitable for 25mm carbon steel cutting, 4-8mm stainless steel cutting, 4-6mm brass cutting, and 2mm aluminum pipe welding
• performance: high-speed cutting on thin sheets combined with strong processing capability on thicker materials
• integration: smaller size and higher stability make it well suited for integration into various industrial laser systems

quality:

• excellent efficiency and reliability across material types
• high consistency due to vertically integrated in-house production
• reduced total cost of ownership through easy, maintenance-free operation

included:

• 1 x mfsc-3000w single module cw fiber laser source
