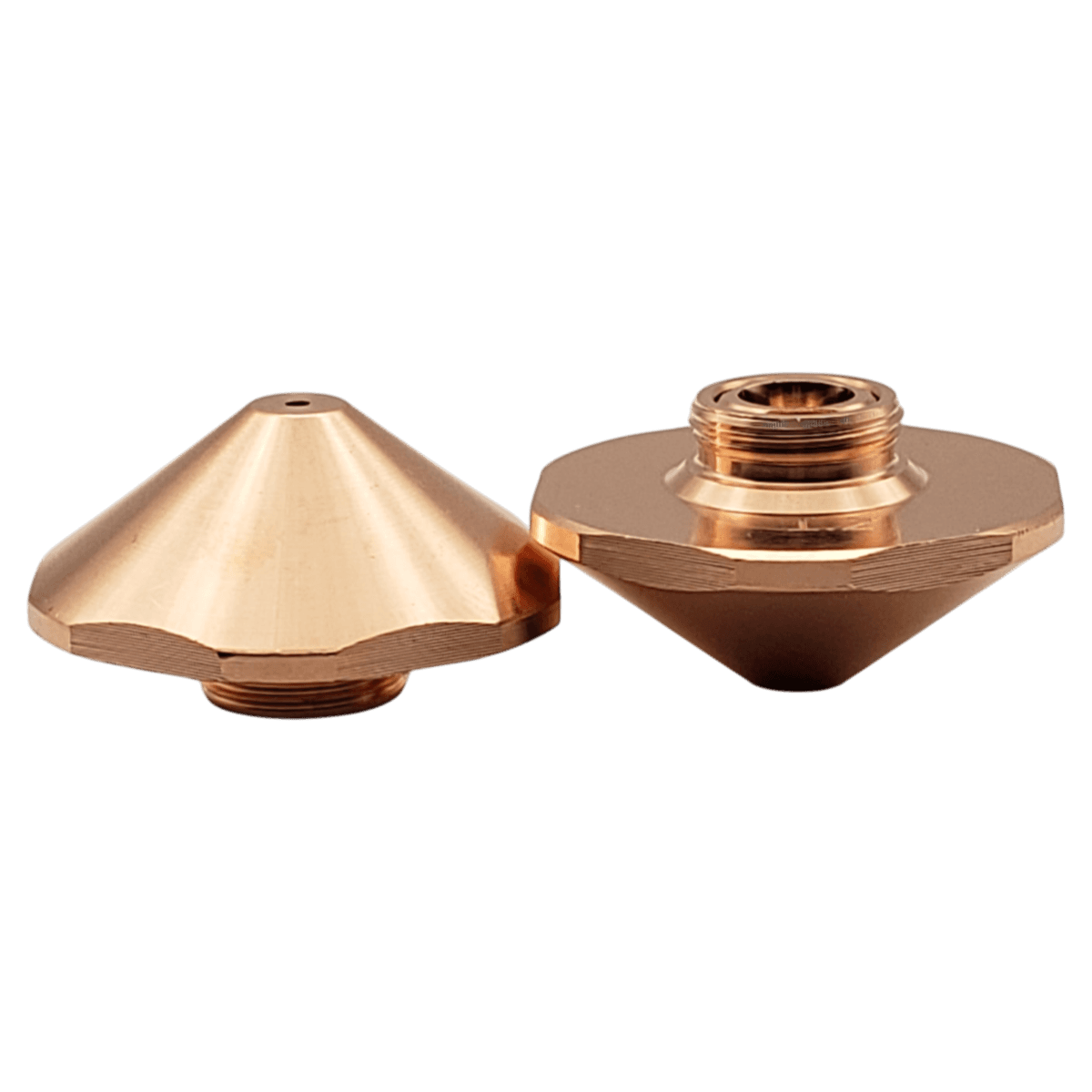

D28 H15 M11 Bodor 2D Double Nozzle 20KW Fiber Laser Cutting Plasarf Original

bodor 2d cutting nozzle for flat sheet cutting on high power fiber laser systems up to 20 kw. double layer body concentrates the assist gas tightly at the cut point, supporting cleaner edges and higher cutting speed. heavier construction to handle the thermal load of high power work. built for repeatable setups and long service life — plasarf original.

size:

• body diameter: d28 mm
• nozzle height: h15 mm
• thread: m11
• nozzle style: bodor 2d form factor (per head specification)
• body and thread dimensions: matched to bodor 2d-type ceramic rings

spec:

• nozzle type: bodor 2d double cutting nozzle plasarf original
• rated for cutting heads running up to 20 kw
• optimized for fiber laser cutting with assist gas (n₂, o₂ or air as allowed by your machine)
• double layer construction for a tighter gas column and higher cutting speed
• suitable for thin-to-medium sheet applications

material:

• precision-machined heat-resistant alloy — plasarf original
• smooth internal passage to reduce turbulence and spatter build-up
• durable surface finish for frequent nozzle changes in production environments

use:

• high-speed flat sheet cutting on 2d fiber laser systems
• caliber 1.2 mm: fine, narrow kerfs and detailed cutting on thin to medium sheet
• suitable for carbon steel, stainless steel and similar metals (machine-dependent)
• helps maintain repeatable pierce and cut quality over long runs

compatibility:

• fits bodor-type 2d fiber laser cutting heads designed for d28 h15 m11 nozzles
• compatible with bodor 2d-standard ceramic rings and holders
• always check your original nozzle style and required caliber before ordering

quality:

• each nozzle qc-checked for concentric caliber geometry and thread accuracy
• clean, burr-free edges to support stable gas flow and consistent focusing
• packed in organized trays for safe transport and easy identification
