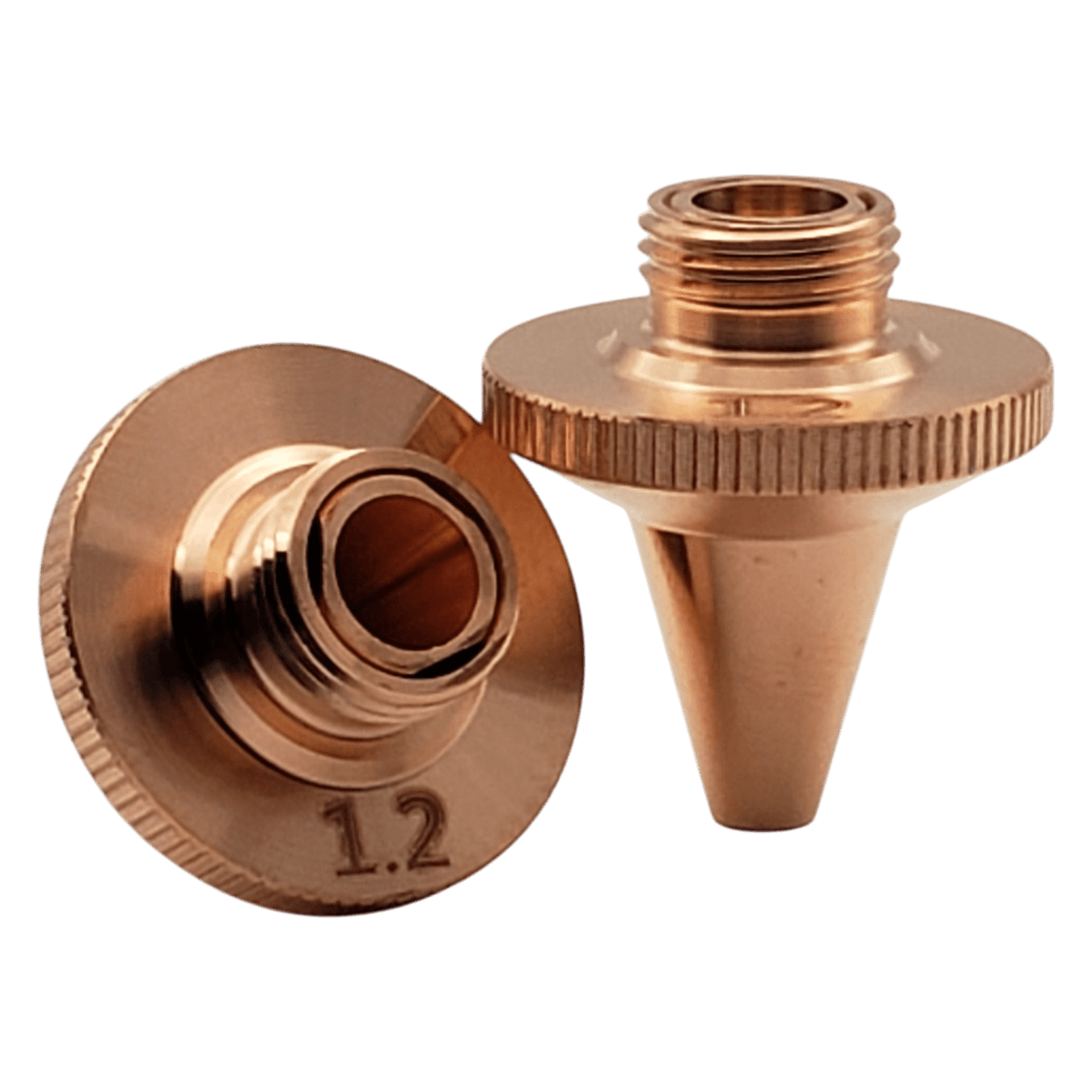

D17 H19 M8 Bodor 3D Double Nozzle 6KW Fiber Laser Tube & Profile Cutting

bodor 3d cutting nozzle for tube, pipe and profile cutting on fiber laser systems up to 6 kw. double layer body concentrates the assist gas tightly at the cut point, supporting cleaner edges and higher speed on thicker wall sections. compact 3d geometry keeps the head clear of curved and angled surfaces. built for repeatable setups and long service life — plasarf original.

size:

• body diameter: d17 mm
• nozzle height: h19 mm
• thread: m8
• nozzle style: bodor 3d form factor (per head specification)
• body and thread dimensions: matched to bodor 3d-type ceramic rings

spec:

• nozzle type: bodor 3d double cutting nozzle plasarf original
• rated for cutting heads running up to 6 kw
• optimized for fiber laser cutting with assist gas (n₂, o₂ or air as allowed by your machine)
• double layer construction for a tighter gas column and higher cutting speed
• compact 3d geometry for tube, pipe and shaped profile work

material:

• precision-machined heat-resistant alloy — plasarf original
• smooth internal passage to reduce turbulence and spatter build-up
• durable surface finish for frequent nozzle changes in production environments

use:

• high-speed tube, pipe and profile cutting where bodor 3d nozzles are required
• caliber 1.2 mm: fine, narrow kerfs on thin wall sections and detailed contours
• caliber 2.0 mm: higher gas flow for thicker wall material and faster throughput
• helps maintain repeatable pierce and cut quality over long runs

compatibility:

• fits bodor-type 3d fiber laser cutting heads designed for d17 h19 m8 nozzles
• compatible with bodor 3d-standard ceramic rings and holders
• always check your original nozzle style and required caliber before ordering

quality:

• each nozzle qc-checked for concentric caliber geometry and thread accuracy
• clean, burr-free edges to support stable gas flow and consistent focusing
• packed in organized trays for safe transport and easy identification
