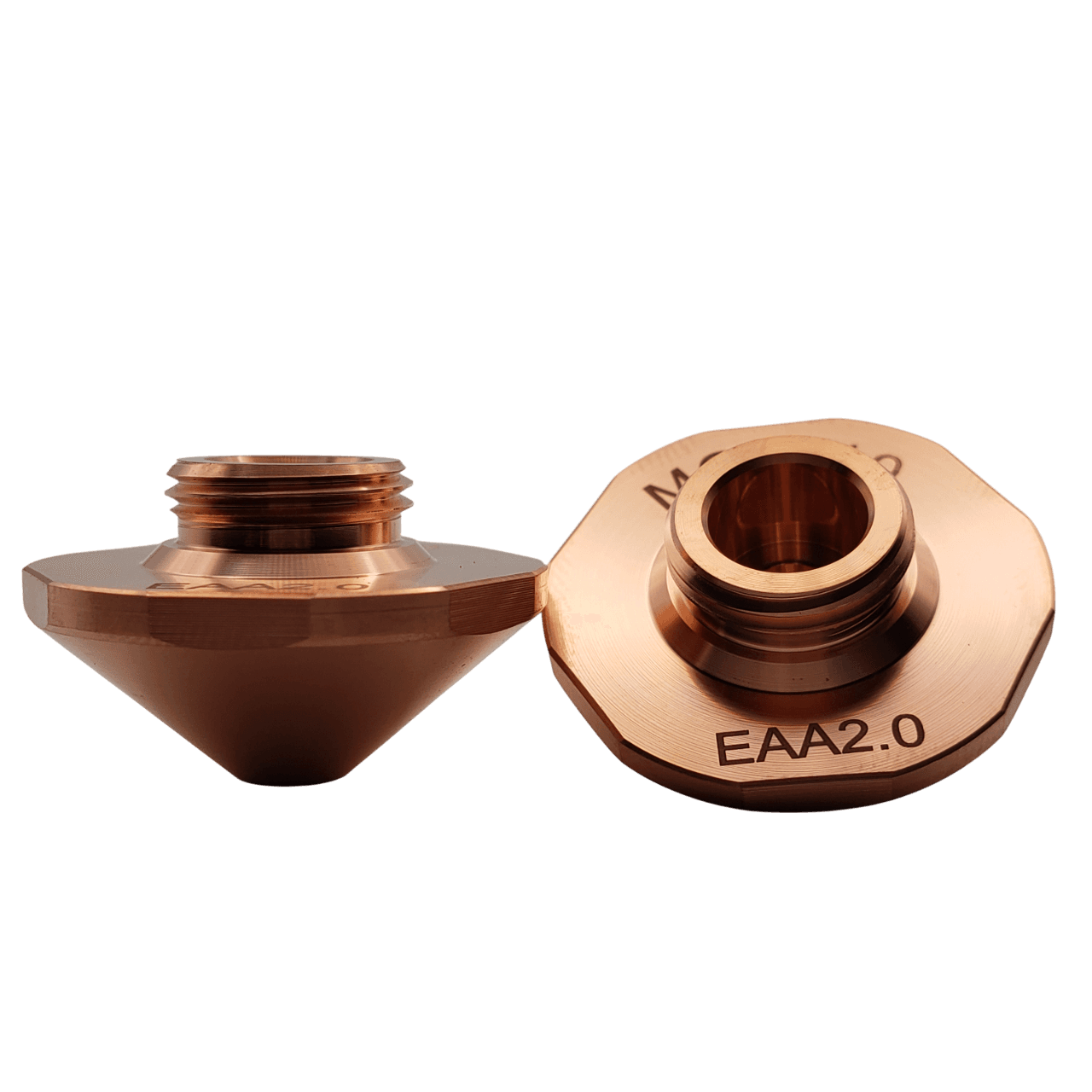

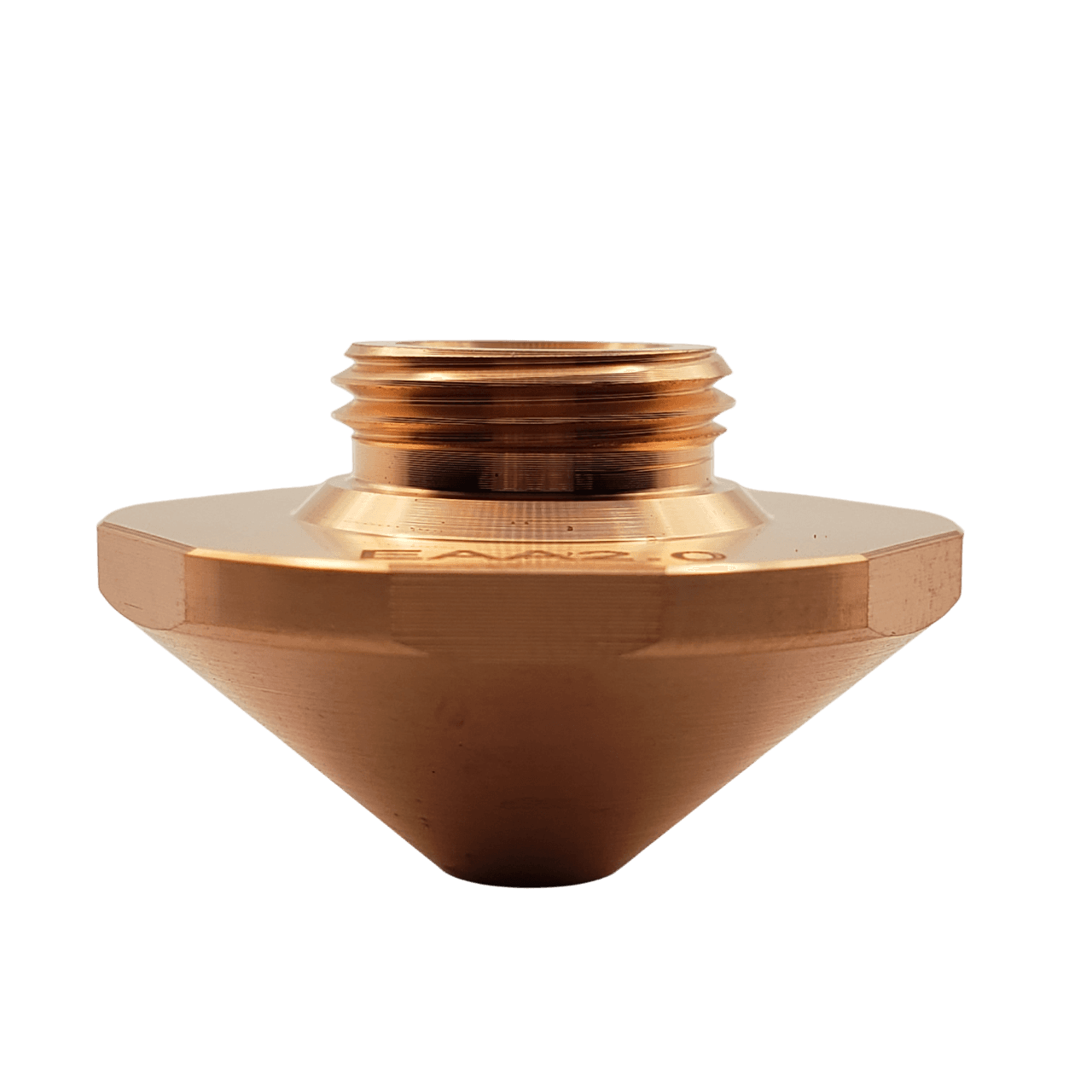

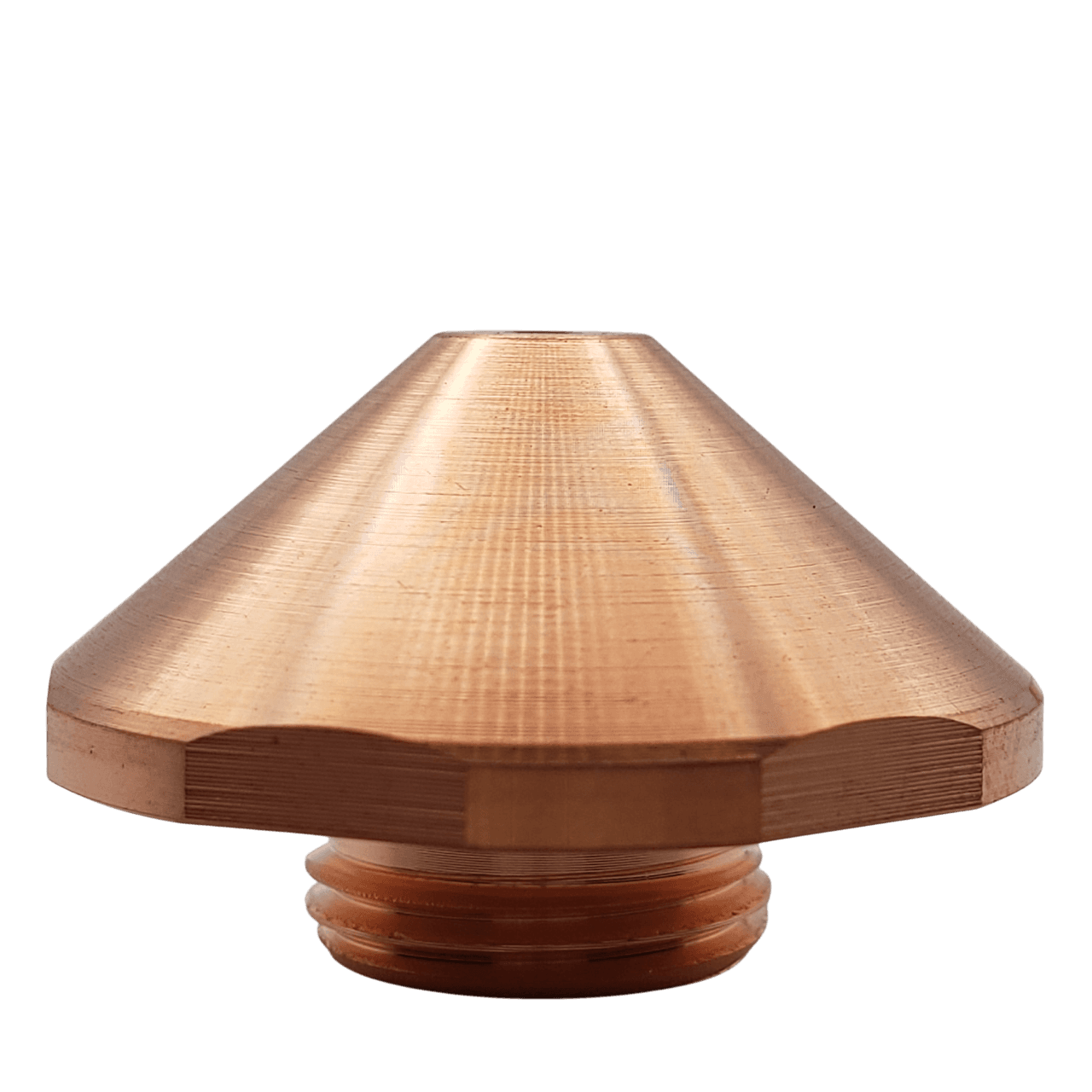

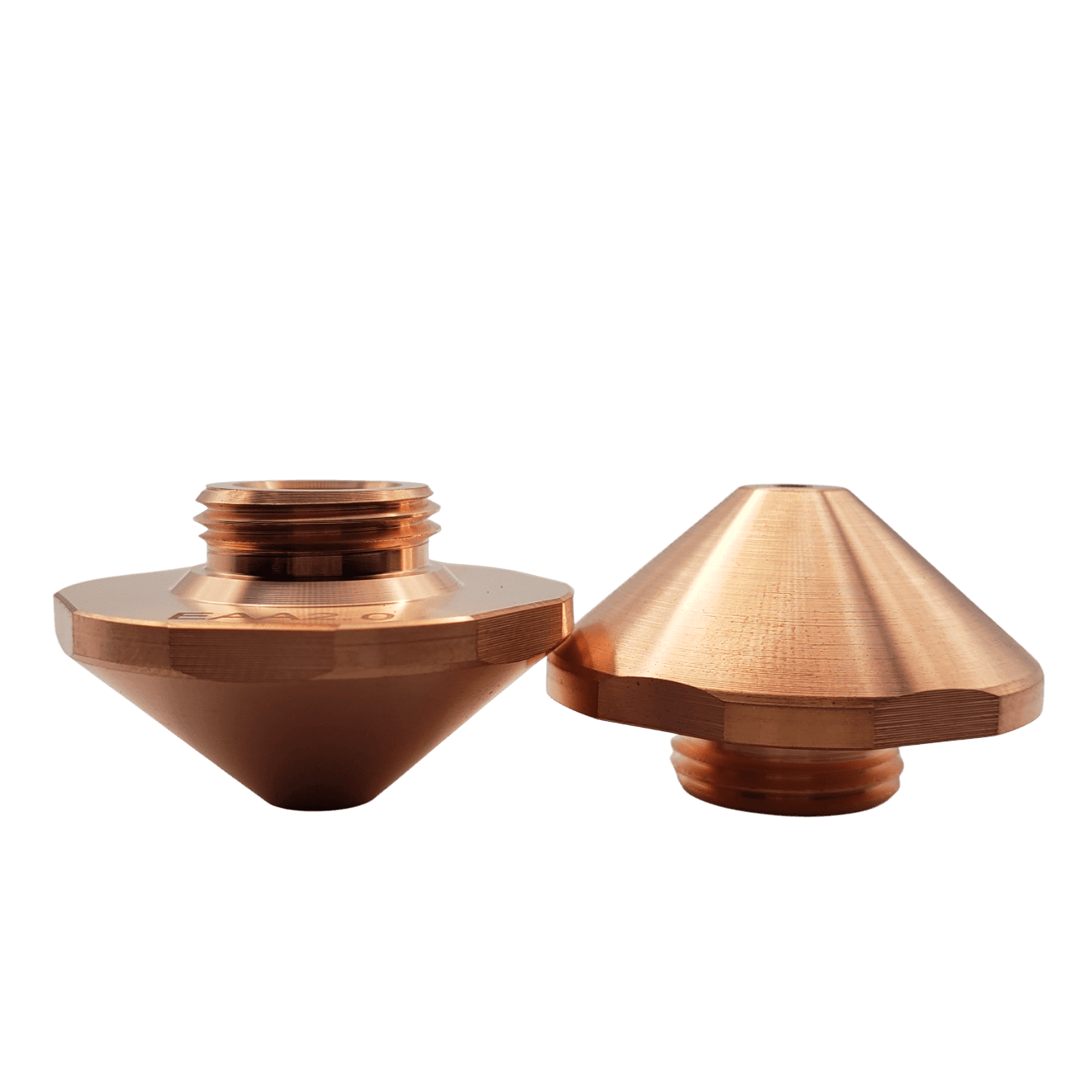

nozzle trumpf eaa (1.0–2.0 mm)

trumpf eaa nozzle for reliable fiber laser cutting on systems that require eaa-style geometry. designed for stable assist-gas flow and a consistent kerf, built for repeatable setups and long service life.

size:

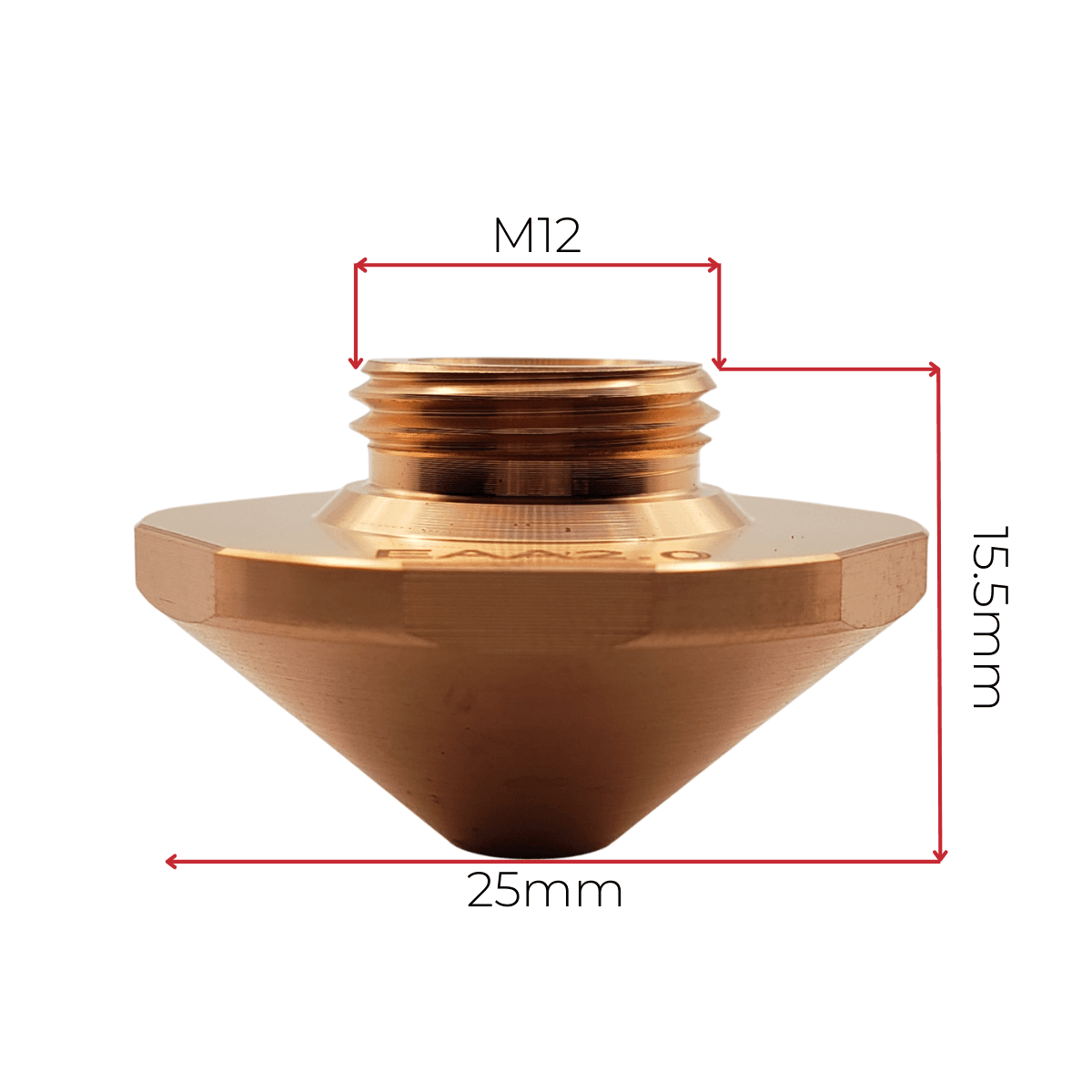

• body diameter: d25 mm
• nozzle height: h15.5 mm
• thread: m12
• nozzle style: trumpf eaa form factor (per head specification)
• body and thread dimensions: matched to eaa-type holders

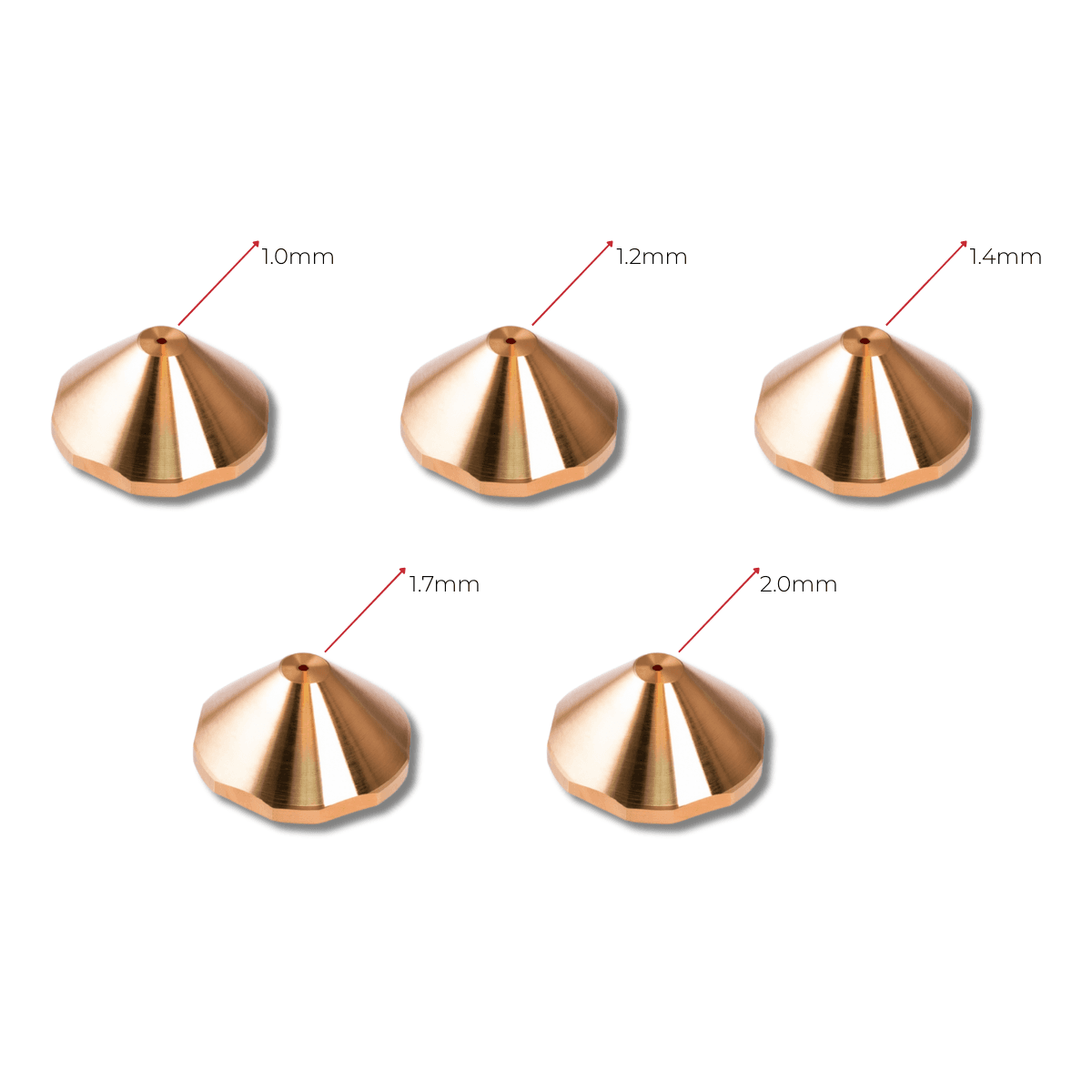

• caliber options: 1.0 / 1.2 / 1.4 / 1.7 / 2.0 mm
• quantity: 1 × nozzle (select caliber on this page)

spec:

• nozzle type: trumpf eaa cutting nozzle plasarf original
• optimized for fiber laser cutting with assist gas (n₂, o₂ or air as allowed by your machine)
• eaa-style geometry for a stable gas column and consistent kerf quality
• suitable for thin-to-medium sheet applications

material:

• precision-machined, heat-resistant alloy — plasarf original

• smooth internal passage to reduce turbulence and spatter build-up

• durable surface finish for frequent nozzle changes in production environments

use:

• everyday fiber laser cutting where trumpf eaa nozzles are required

• calibers 1.0–1.4 mm: fine, narrow kerfs and detailed cutting

• calibers 1.7–2.0 mm: higher gas flow for thicker material or higher throughput

• helps maintain repeatable pierce and cut quality over long runs

compatibility:

• fits trumpf-type fiber laser cutting heads and nozzle holders designed for eaa nozzles

• compatible with most trumpf eaa-standard ceramic rings and holders

• always check your original nozzle style and required caliber before ordering

quality:

• each nozzle qc-checked for concentric caliber geometry and thread accuracy

• clean, burr-free edges to support stable gas flow and consistent focusing

• packed in organized trays for safe transport and easy identification
