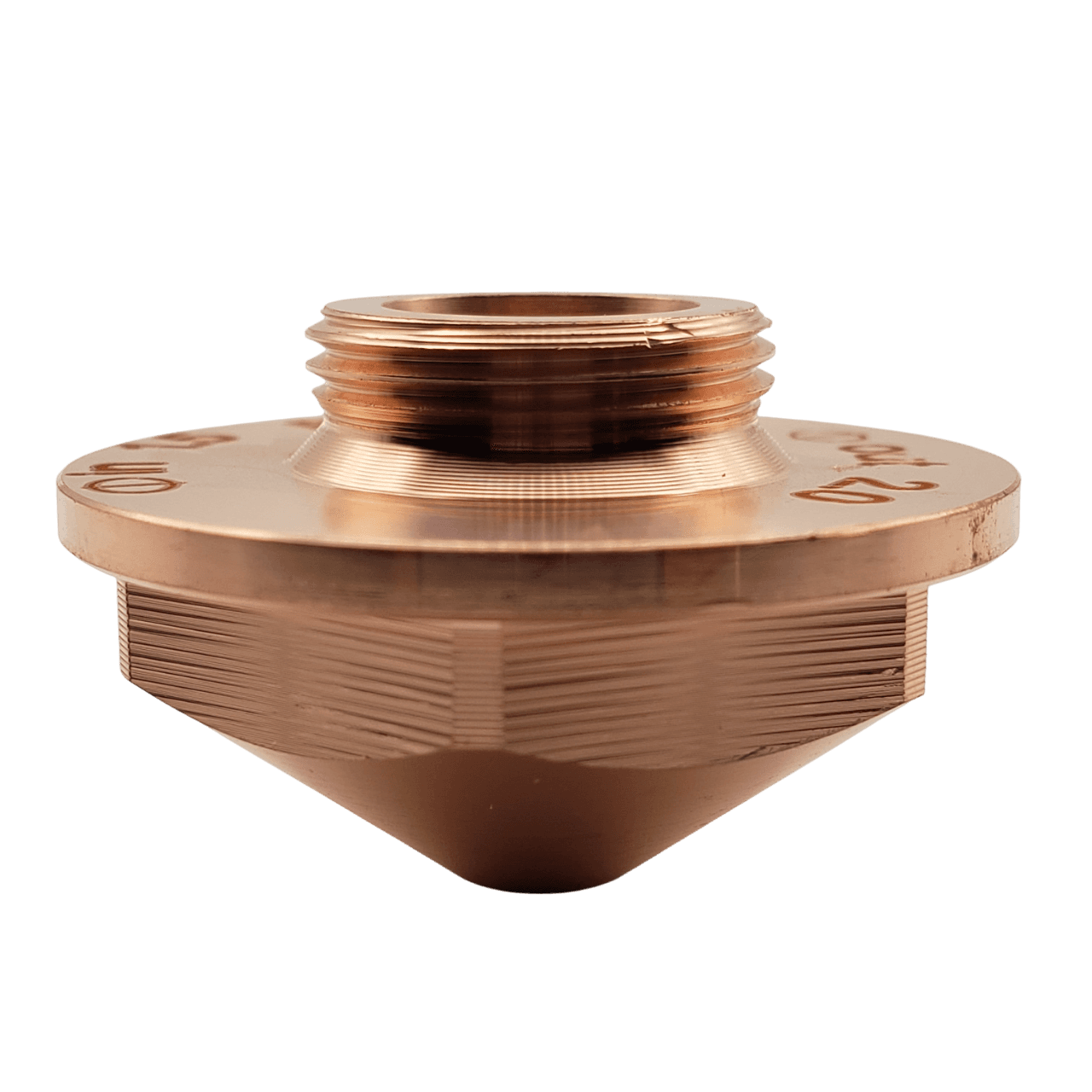

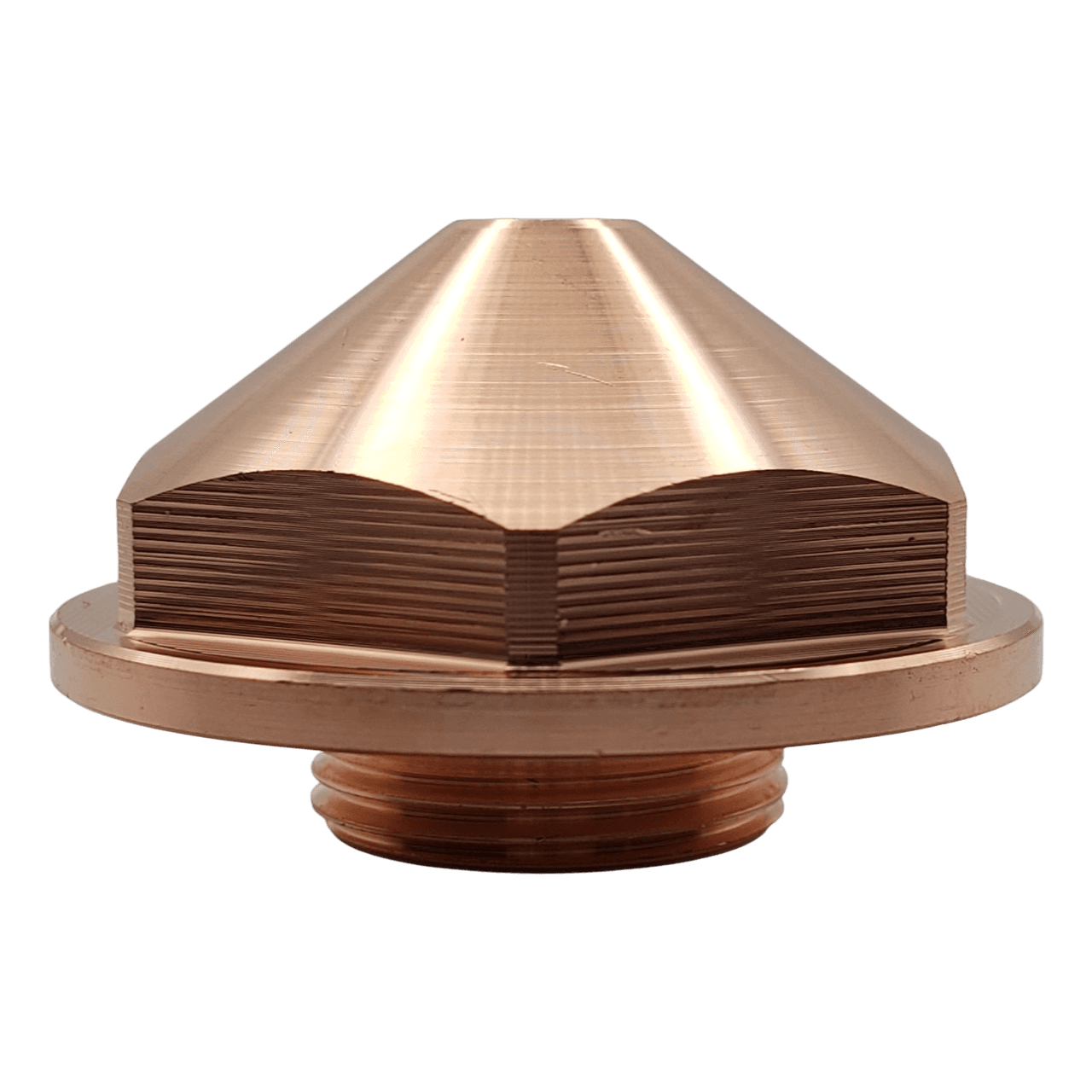

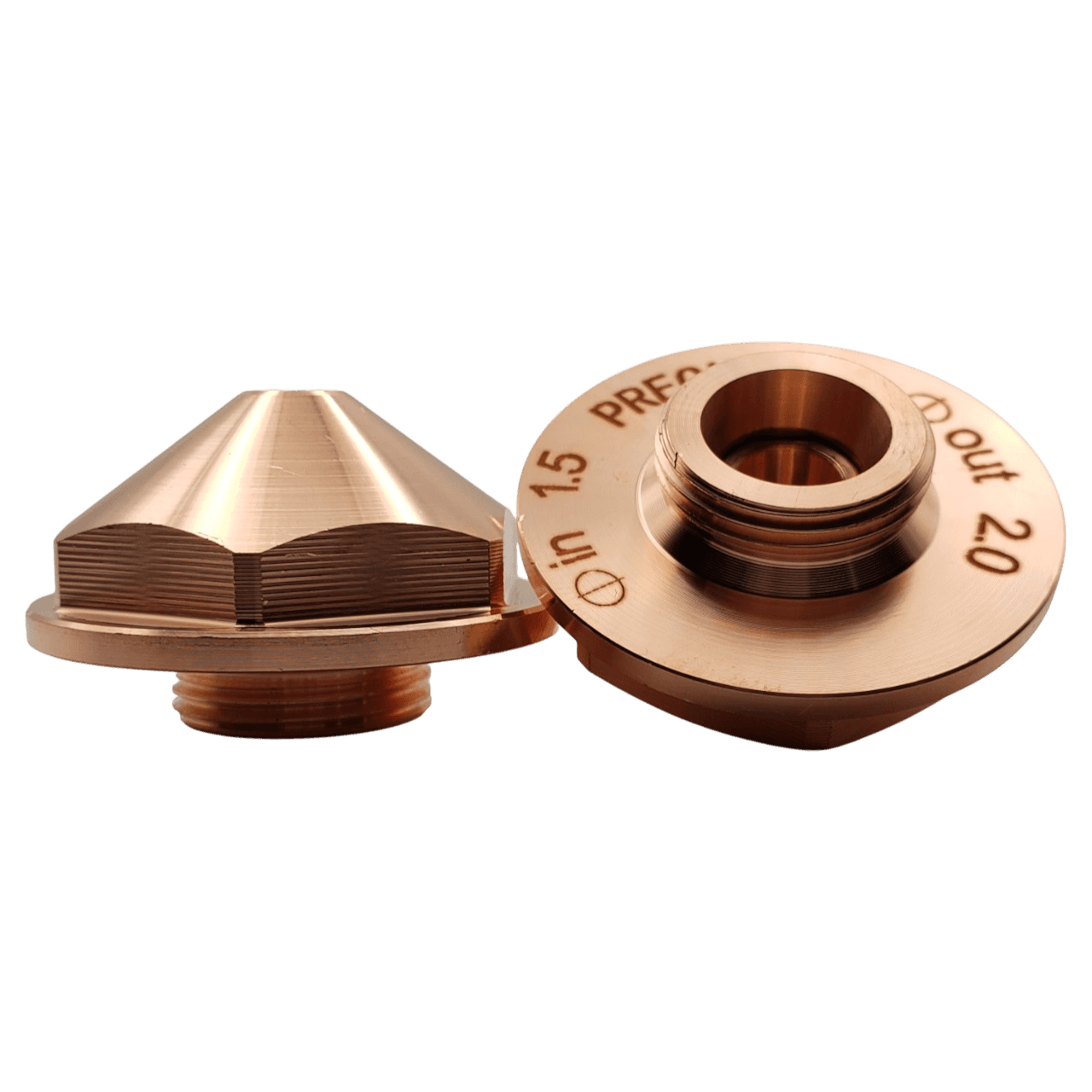

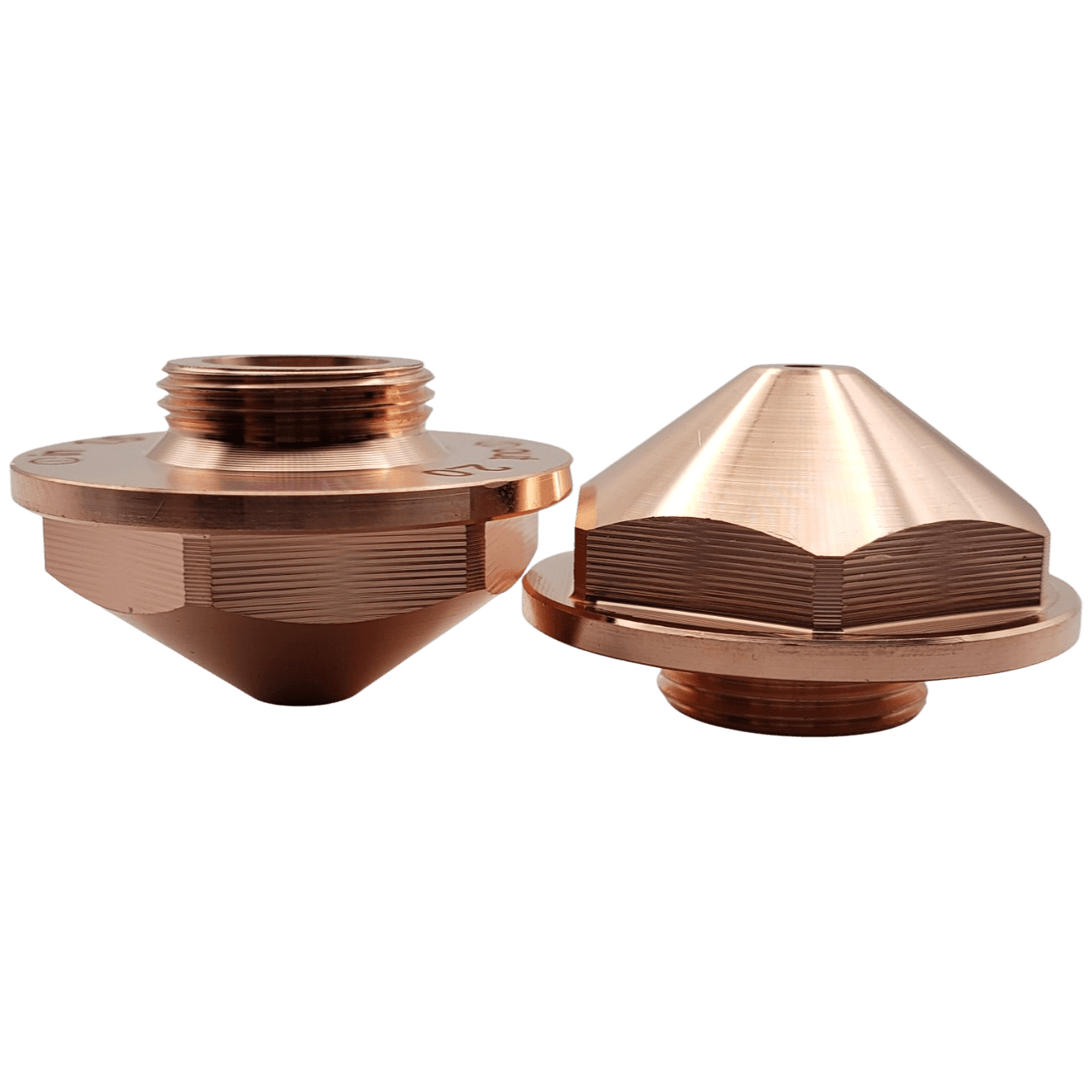

D30 H18.6 M15 KTX Double Nozzle Fiber Laser Cutting Plasarf Original

ktx double nozzle for high-speed fiber laser cutting. the ktx double-outlet design stabilizes assist-gas flow at higher speeds, giving reliable penetration and smooth kerfs, especially on thicker or demanding materials. this page covers all calibers in the series; 1.2 mm is ideal for thin sheet cutting with high edge quality.

compatible with precitec procutter fiber laser heads and many bodor, hsg, hans and other machines that use ktx-type nozzles (confirm your head type and dimensions before ordering).

size:

• body diameter: d30 mm
• nozzle height: h18.6 mm
• thread: m15
• nozzle style: ktx double-outlet cutting nozzle
• form factor: ktx type (dimensions per head specification)

spec:

• nozzle type: double cutting nozzle plasarf original
• optimized for high-speed fiber laser cutting with assist gas
• 1.0 / 1.2 mm caliber: for thin sheet, narrow kerf and detailed parts at higher cutting speeds
• 1.5 / 2.0 mm calibers: for thicker sheet and higher gas flow where more throughput is required

material:

• precision-machined heat-resistant alloy
• smooth internal and external surfaces to reduce turbulence and spatter build-up
• plasarf original quality control on every batch

use:

• high-speed fiber laser cutting on thin and medium sheets
• double outlet helps keep assist-gas flow stable and kerfs cleaner at higher feed rates
• suitable for oxygen or nitrogen assist gas (follow your machine specifications)

compatibility:

• fits fiber-laser heads that use ktx-type double nozzles
• always confirm your original nozzle style (ktx), dimensions and required caliber before ordering

quality:

• each nozzle checked for concentric caliber geometry
• consistent diameter and surface finish for repeatable cutting results

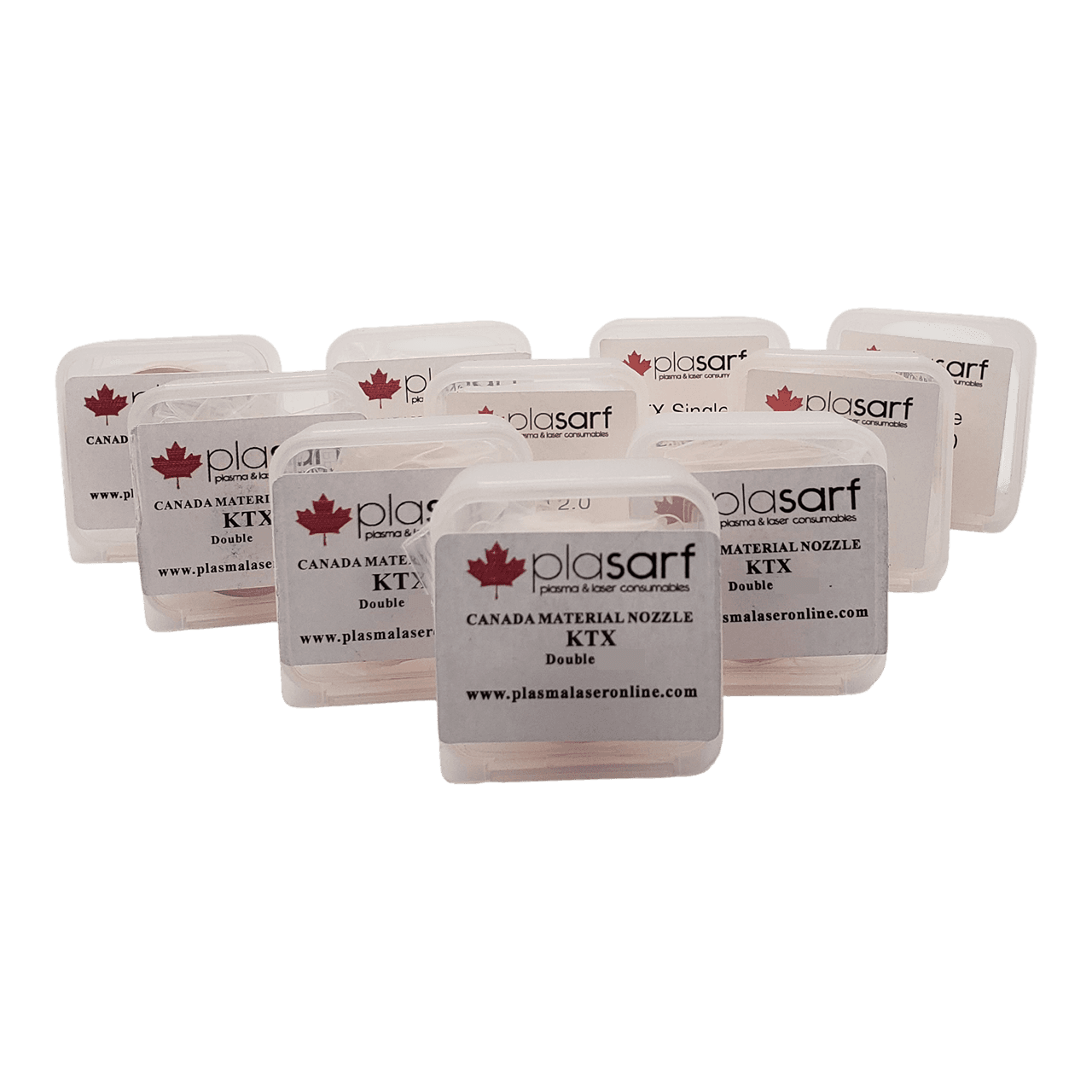

• packed in trays to avoid damage during transport
