nozzle ktx double (1.2–2.0 mm)

ktx double nozzle for high-speed fiber laser cutting. the ktx double-outlet design stabilizes assist-gas flow at higher speeds, giving reliable penetration and smooth kerfs, especially on thicker or demanding materials. this page covers all calibers in the series; 1.2 mm is ideal for thin sheet cutting with high edge quality. compatible with precitec procutter fiber laser heads and many bodor, hsg, hans and other machines that use ktx-type nozzles (confirm your head type).

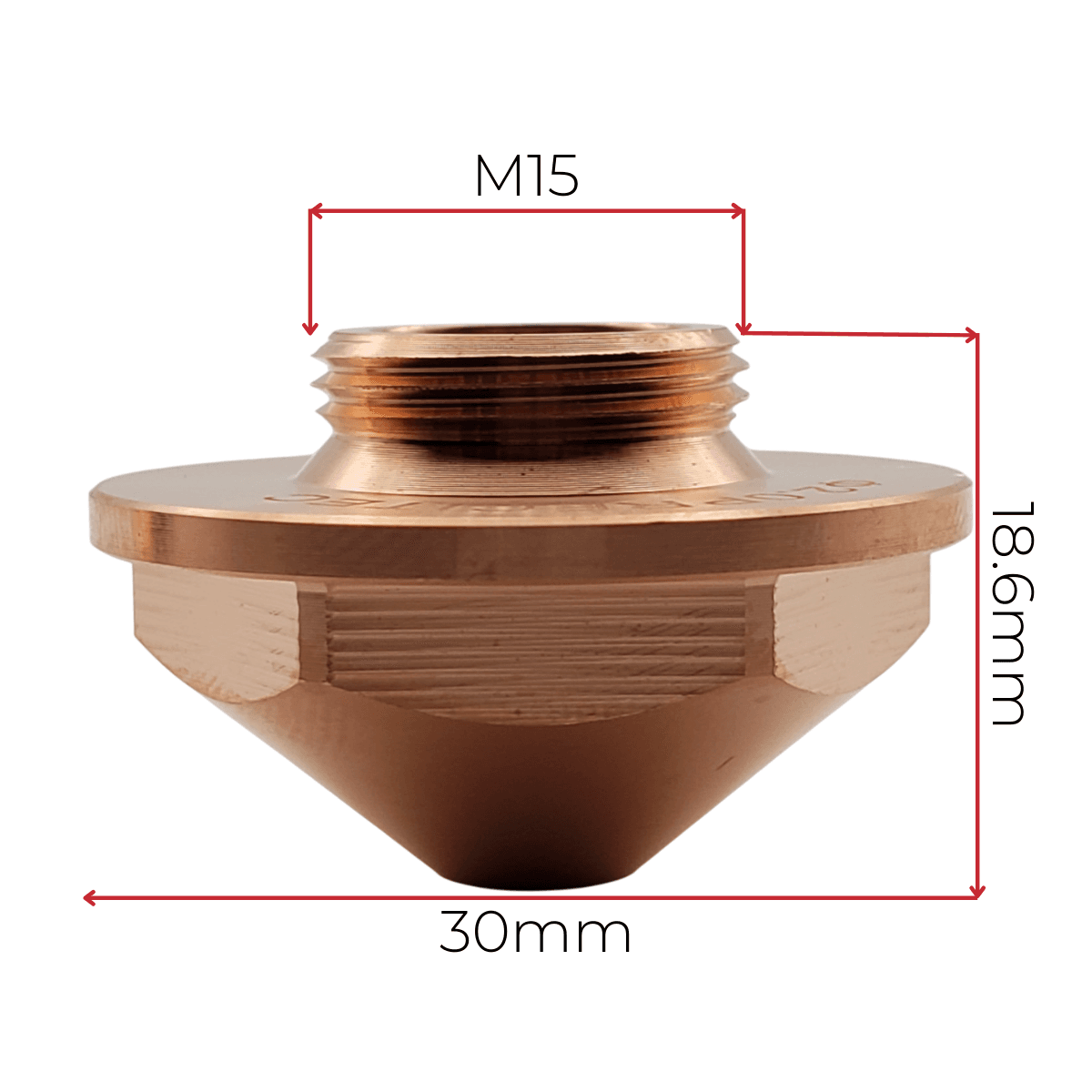

size:

• body diameter: d30 mm
• nozzle height: h18.6 mm
• thread: m15

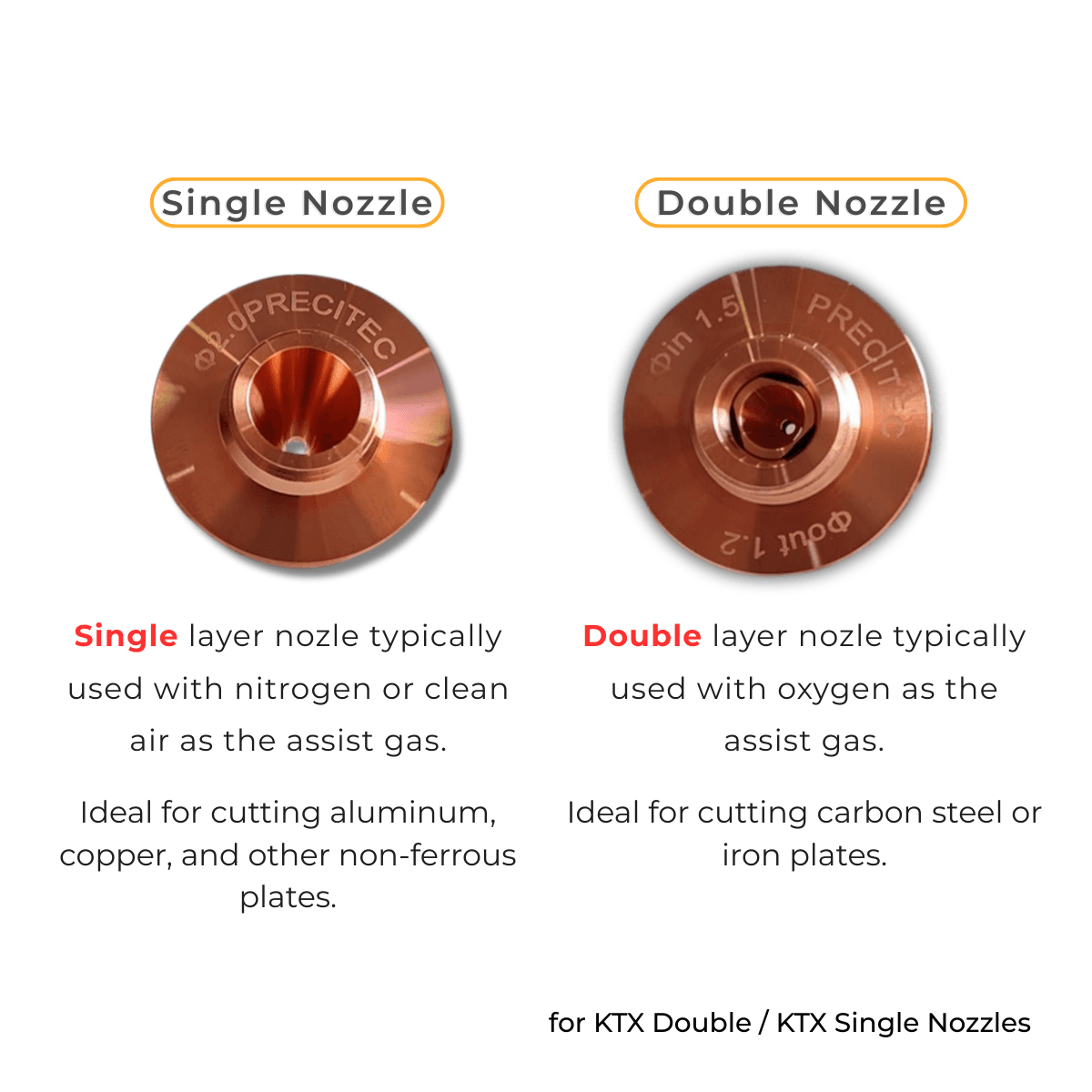

• nozzle style: ktx double-outlet cutting nozzle
• form factor: ktx type (dimensions per head specification)

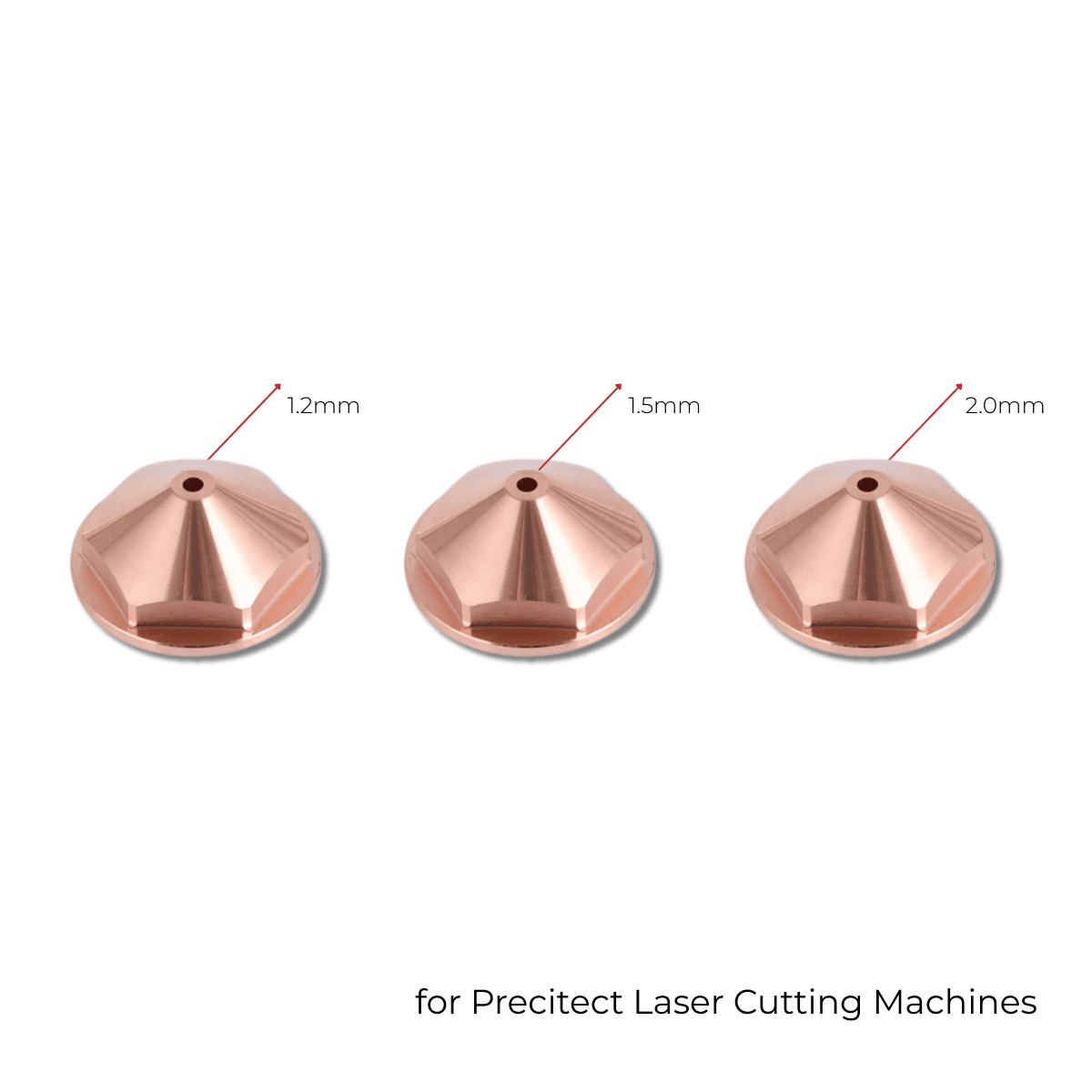

• caliber options: 1.2 / 1.5 / 2.0 mm
• quantity: 1 × nozzle (select caliber on this page)

spec:

• nozzle type: double cutting nozzle plasarf original
• optimized for high-speed fiber laser cutting with assist gas
• 1.2 mm caliber: for thin sheet, narrow kerf and detailed parts at higher cutting speeds
• 1.5 / 2.0 mm calibers: for thicker sheet and higher gas flow where more throughput is required

material:

• precision-machined, heat-resistant alloy

• smooth internal and external surfaces to reduce turbulence and spatter build-up

• plasarf original quality control on every batch

use:

• high-speed fiber laser cutting on thin and medium sheets
• double outlet helps keep assist-gas flow stable and kerfs cleaner at higher feed rates
• suitable for oxygen or nitrogen assist gas (follow your machine specifications)

compatibility:

• fits fiber-laser heads that use ktx-type double nozzles
• always confirm your original nozzle style (ktx), dimensions and required caliber before ordering

quality:

• each nozzle checked for concentric caliber geometry
• consistent diameter and surface finish for repeatable cutting results
• packed in trays to avoid damage during transport
