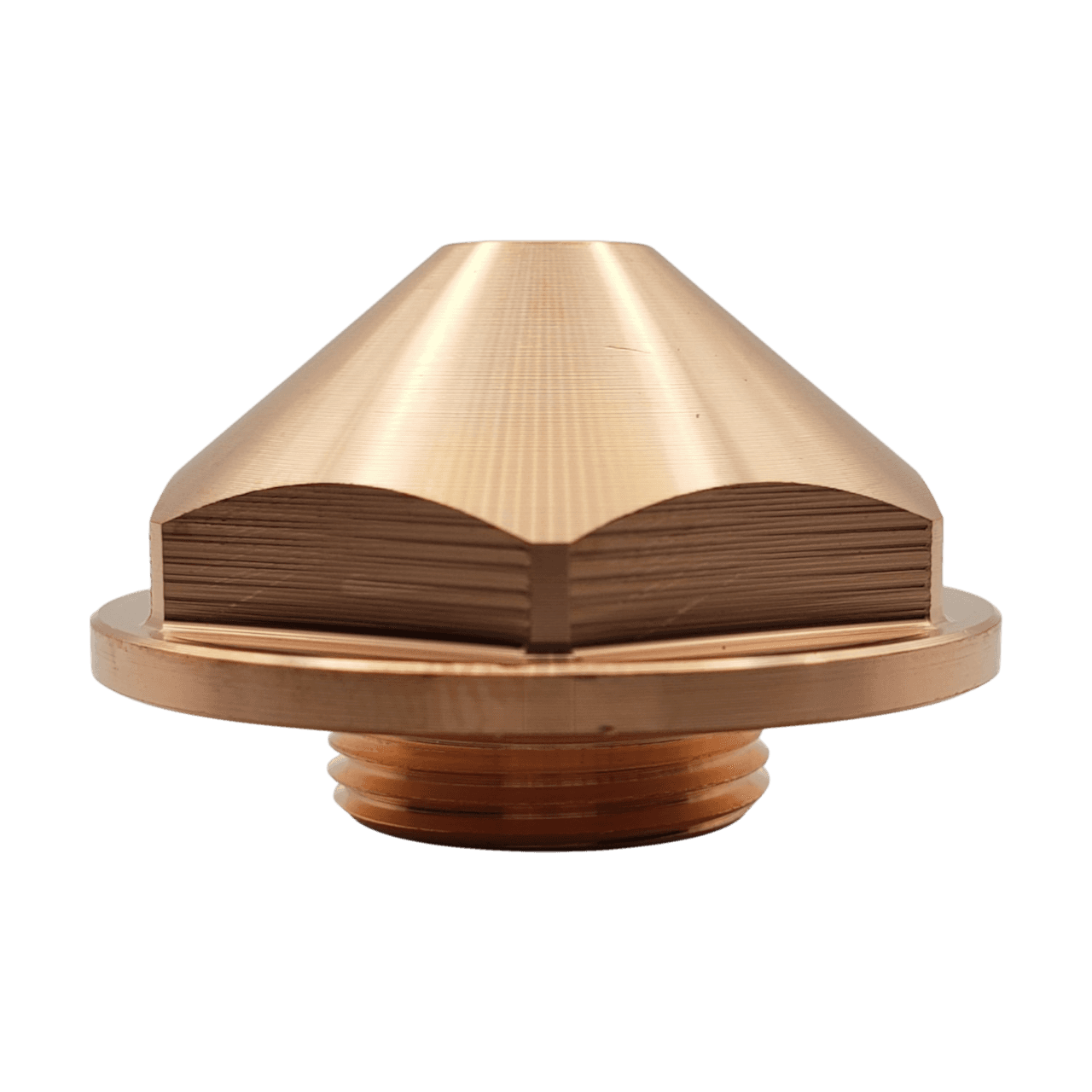

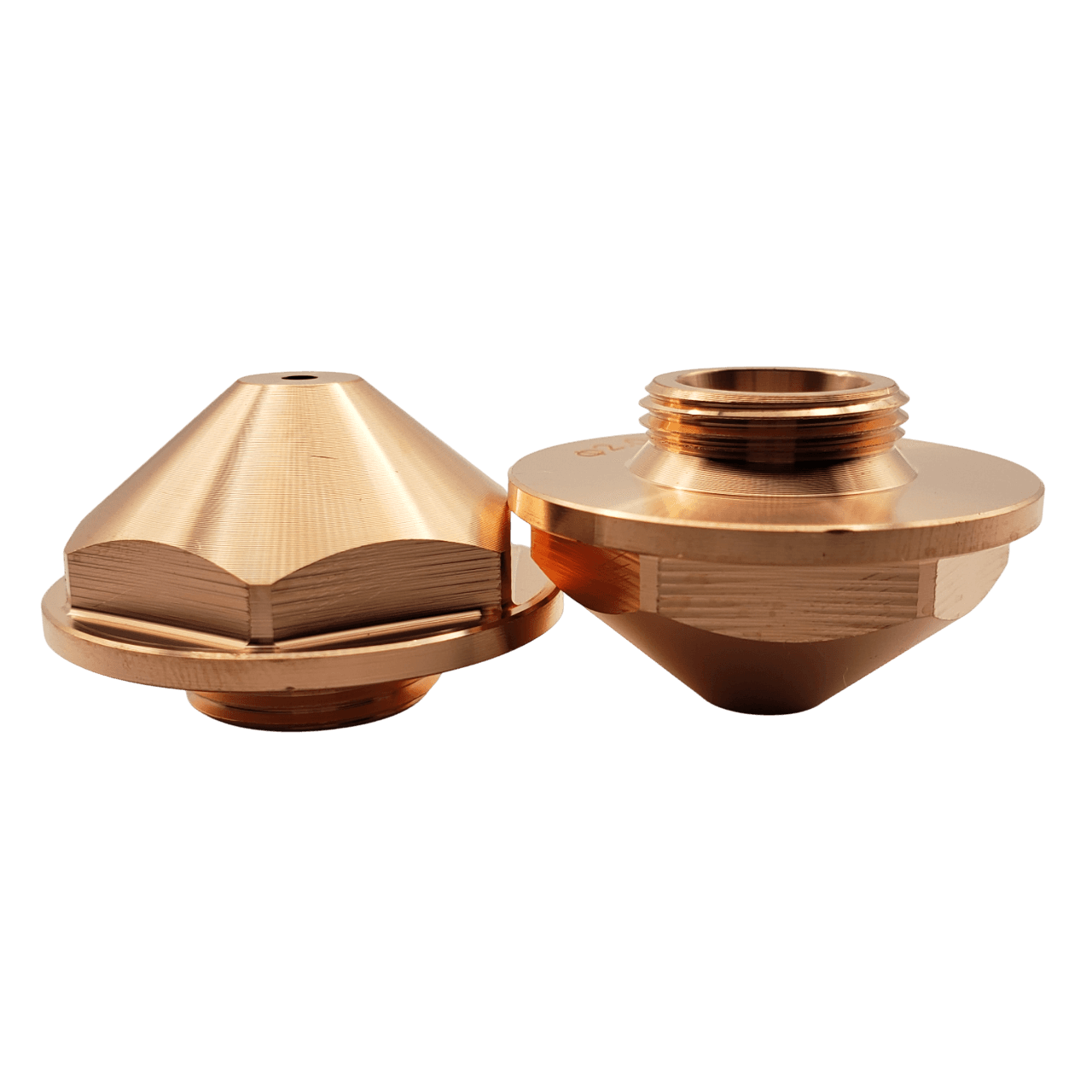

D30 H18.6 M15 KTX Single Nozzle Fiber Laser Cutting Plasarf Original

ktx single nozzle for high-speed fiber laser cutting. stable assist-gas flow at the nozzle exit eliminates the pressure turbulence that causes edge oxidation, spatter adhesion and uneven penetration — giving clean, repeatable kerfs on thin and demanding materials. this page covers all calibers in the series; 1.2 mm is the recommended starting point for most nitrogen-cut applications on thin sheet.

compatible with precitec procutter fiber laser heads and many bodor, hsg, hans and other machines that use ktx-type nozzles (confirm your head type and dimensions before ordering).

size:

• body diameter: d30 mm
• nozzle height: h18.6 mm
• thread: m15
• nozzle style: ktx single-outlet cutting nozzle
• form factor: ktx type (dimensions per head specification)

spec:

• nozzle type: single cutting nozzle plasarf original
• optimized for high-speed fiber laser cutting with assist gas
• 1.0 mm caliber: narrow kerf, minimal heat-affected zone — detailed parts and thin sheet ≤2 mm at high feed rates
• 1.2 mm caliber: most versatile in the series — thin-to-medium sheet with excellent edge finish
• 1.5 mm caliber: higher volumetric gas flow for sheet in the 3–6 mm range where a 1.2 mm outlet would starve the cut front
• 2.0 mm caliber: maximum throughput — medium-thick sheet on oxygen or high-pressure nitrogen where gas flow is the limiting factor

material:

• precision-machined heat-resistant alloy
• smooth internal and external surfaces to reduce turbulence and spatter build-up
• plasarf original quality control on every batch

use:

• high-speed fiber laser cutting on thin and medium sheets
• single outlet helps keep assist-gas flow stable and kerfs cleaner at higher feed rates
• suitable for oxygen or nitrogen assist gas (follow your machine specifications)

compatibility:

• fits fiber-laser heads that use ktx-type single nozzles
• always confirm your original nozzle style (ktx), dimensions and required caliber before ordering

quality:

• each nozzle checked for concentric caliber geometry
• consistent diameter and surface finish for repeatable cutting results

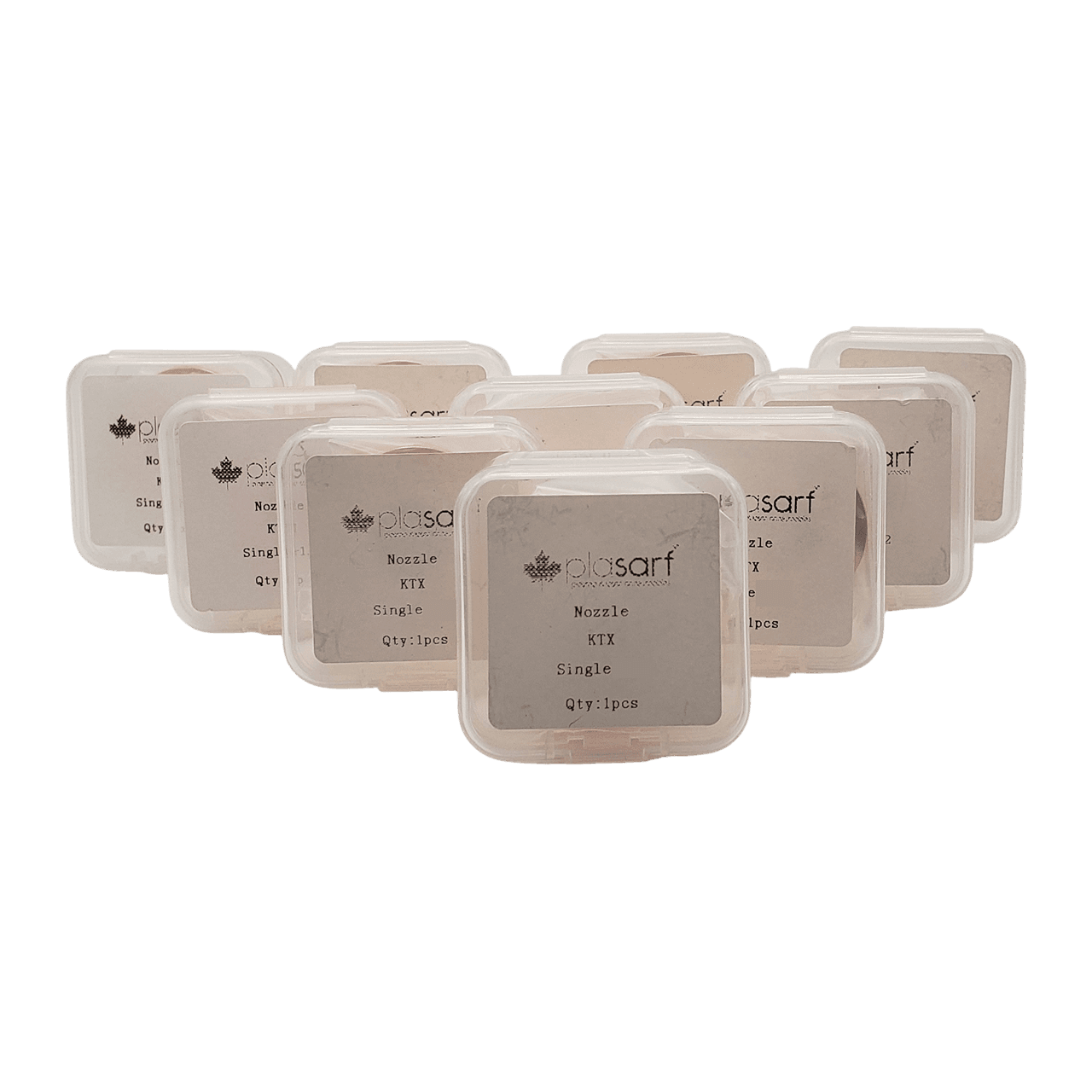

• packed in trays to avoid damage during transport
