nozzle standard double d32 h15 m14 (1.2–3.0 mm)

standard hd d32 double nozzle for precise fiber laser cutting. d32 × h15 body with m14 thread fits common industrial cutting heads. this page covers all calibers in the series; 1.2 mm is ideal for thin sheet and fine-kerf cutting. commonly used on raytools and bodor fiber laser machines that accept d32 h15 m14 nozzles (always confirm your original nozzle size and thread).

size:

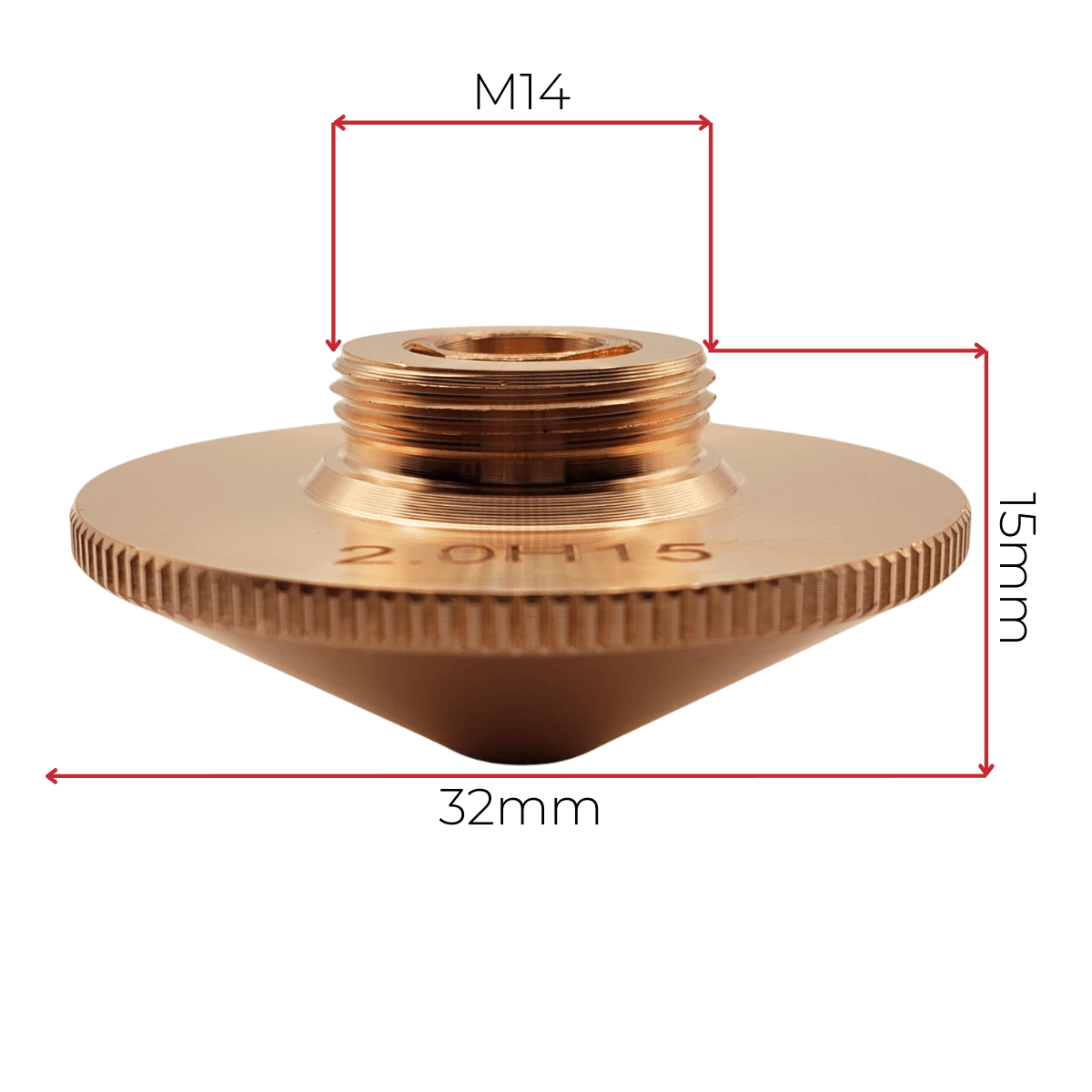

• nozzle body diameter: d32 m
• nozzle height: h15 mm
• thread: m14

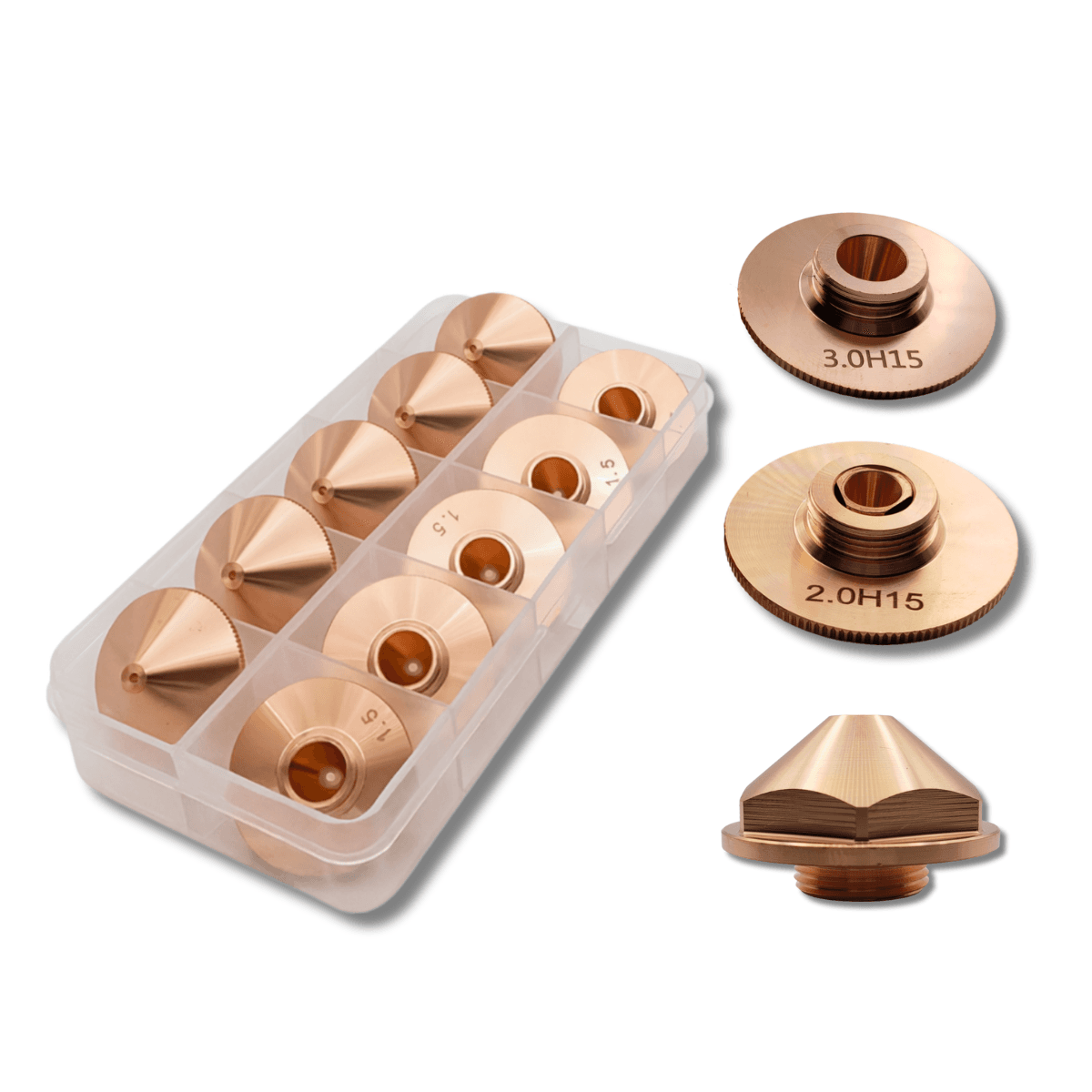

• caliber options: 1.2 / 1.5 / 2.0 / 2.5 / 3.0 mm
• quantity: 1 × nozzle (select caliber on this page)

spec:

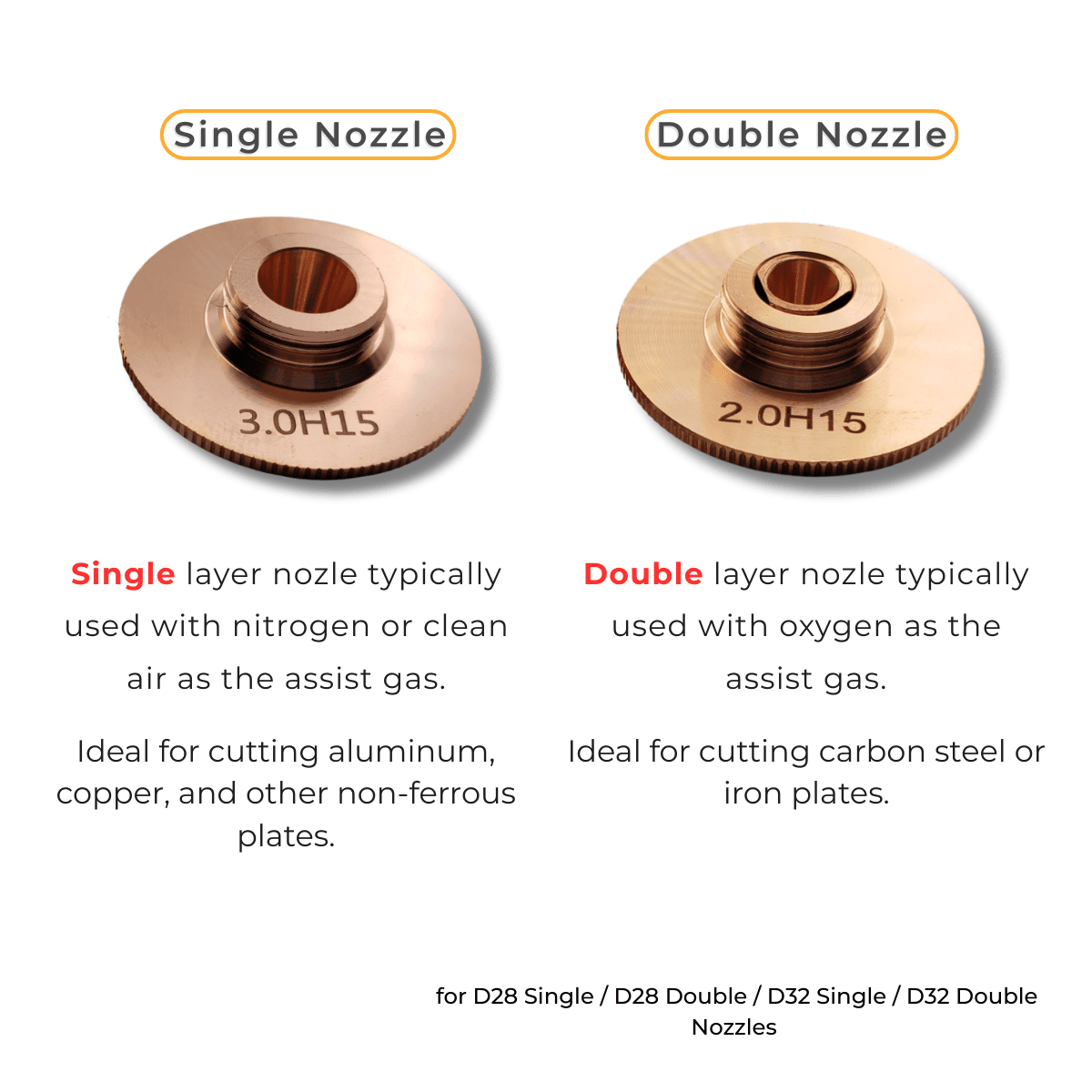

• nozzle type: double cutting nozzle plasarf original
• 1.2 mm caliber: for thin sheet, narrow kerf and detailed parts
• 1.5 / 2.0 mm calibers: for thin–medium sheets with higher gas flow
• 2.5 / 3.0 mm calibers: for thicker material and higher throughput
• suitable for use with oxygen or nitrogen assist gas (follow your machine specs)

material:

• precision-machined, heat-resistant alloy
• smooth internal and external surfaces to reduce turbulence and spatter build-up
• plasarf original quality control on every batch

use:

• fiber laser cutting of thin to medium metal sheets
• applications where fine kerf and clean edges are required
• supports stable cutting conditions and repeatable pierce and cut quality

compatibility:

• fits fiber-laser heads using d32 / h15 / m14 double nozzles
• always confirm your original nozzle dimensions and required caliber before ordering

quality:

• each nozzle checked for concentric caliber geometry
• consistent diameter and surface finish for repeatable cutting results
• packed in trays to avoid damage during transport
