raytools bm109 qbh pulse f125 auto-focus cutting head for fiber laser up to 1.5kw

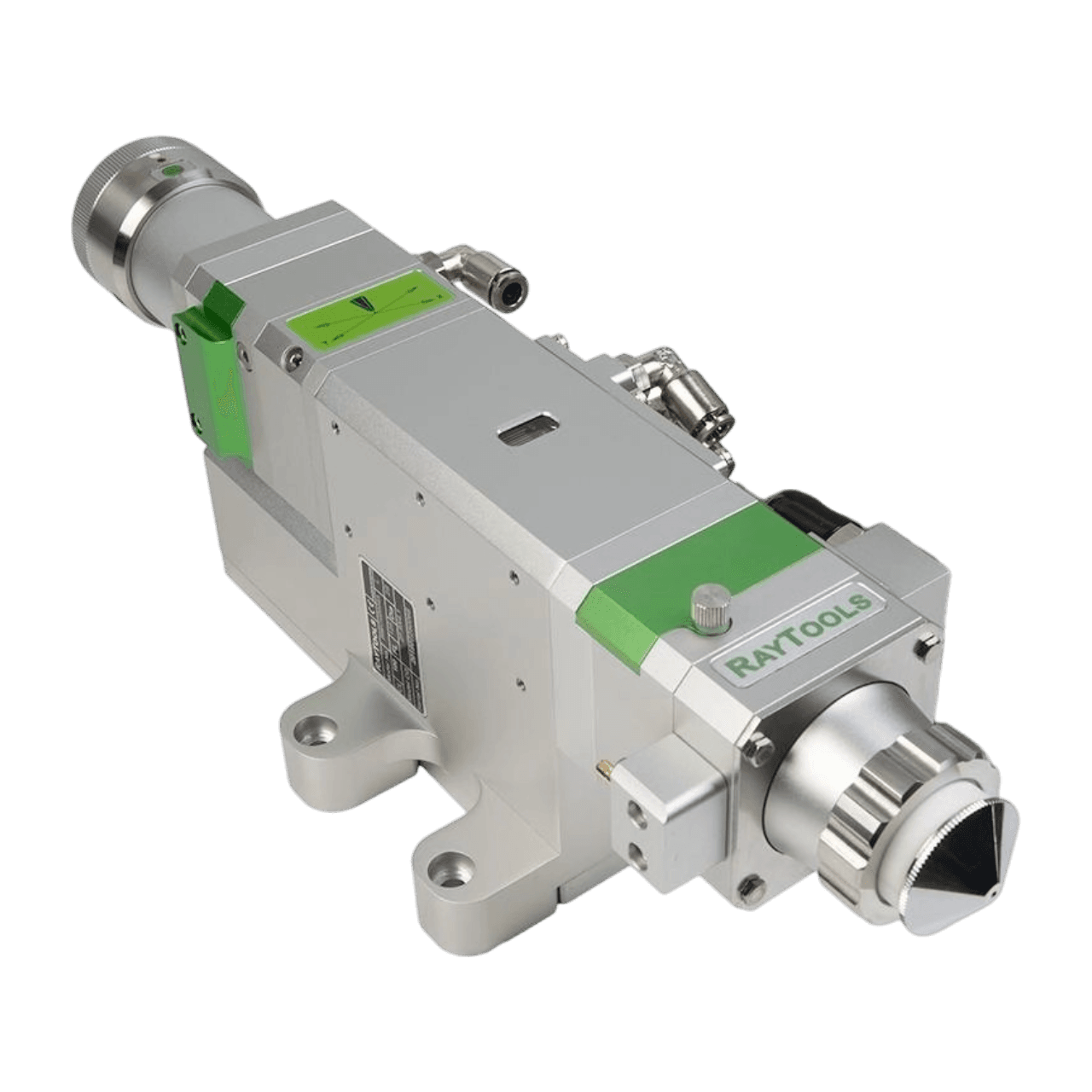

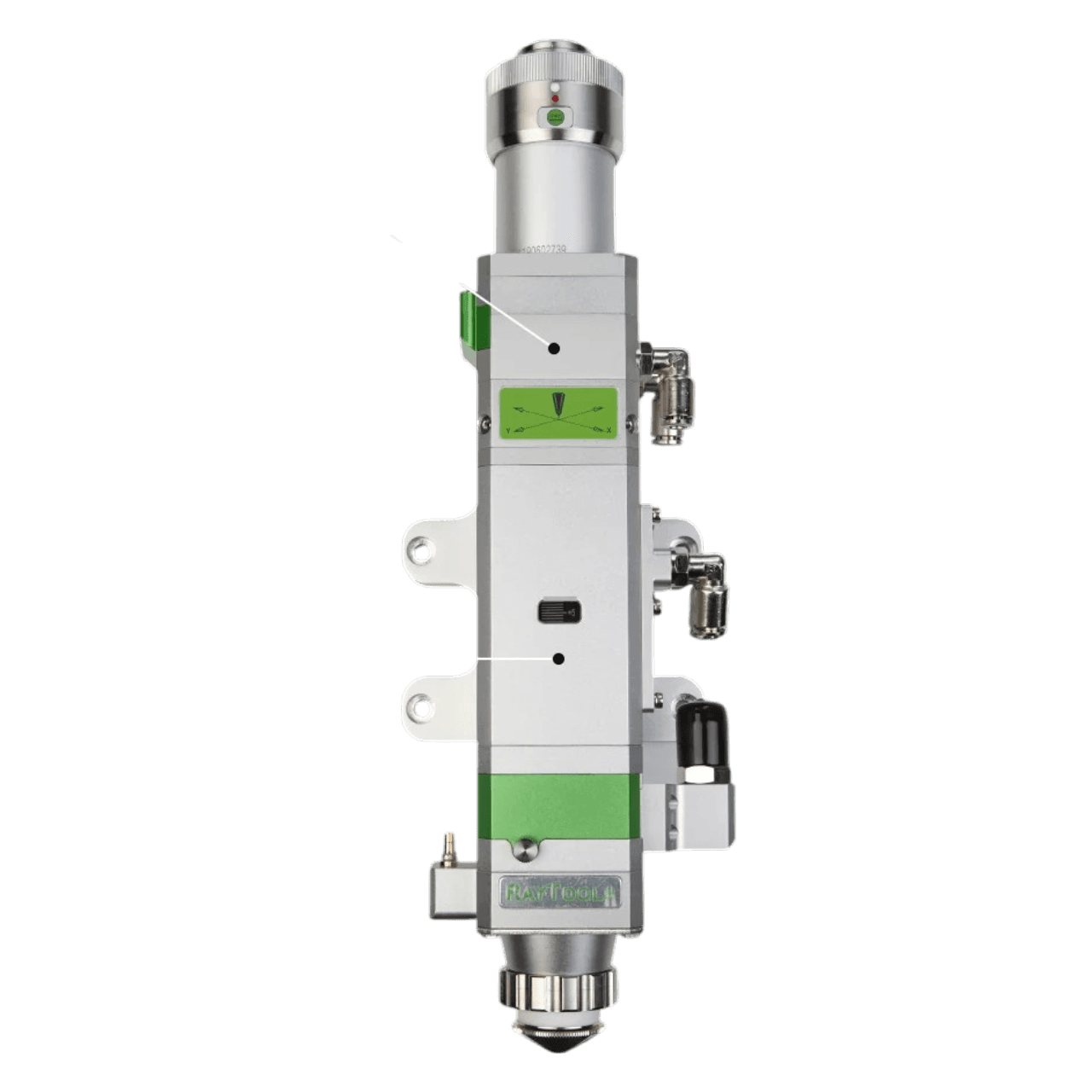

raytools bm109 qbh pulse auto-focus cutting head for fiber laser cutting applications up to 1.5 kw. designed for sheet metal processing and general industrial metal cutting, this bm109 series cutting head uses pulse auto-focus control with qbh interface configuration to support stable beam delivery, reliable focus adjustment and consistent cutting performance across different material thicknesses. the protected optical structure, water-cooled design and drawer-type lens mount help improve durability, maintenance access and day-to-day production stability.

commonly used on fiber laser cutting machines for thin to medium sheet applications where pulse auto-focus performance, optical protection and repeatable cutting quality are important.

size:

• model: raytools bm109 qbh pulse auto-focus cutting head
• power rating: up to 1.5 kw
• clear aperture: 26 mm
• collimation protective glass: d24.9 mm × 1.5 mm
• focusing protective glass: d27.9 mm × 4.1 mm
• assist gas pressure: up to 25 bar
• weight: approx. 3 kg

spec:

• qbh pulse auto-focus fiber laser cutting head for applications up to 1.5 kw
• d28 diameter lens set design
• auto-focus range: +8 mm to -9 mm
• focusing accuracy: 0.05 mm
• maximum focusing-lens acceleration: 10 m/s²
• maximum focusing speed: 6 m/min
• collimator lens and focusing lens protected by cover glass modules
• drawer-type lens mount for quick and easy access to the protective glass
• built-in motor drive unit with linear focusing mechanism
• efficient airflow design for stable cutting conditions
• dust-proof structure for improved internal protection
• anti-collision function
• water-cooled structure supports stable long-term operation

material:

• industrial-grade metal body construction
• precision-machined internal structure for optical and mechanical stability
• protected design to help reduce contamination of internal optics
• built for continuous industrial laser cutting environments

use:

• fiber laser cutting of sheet metal and general metal parts
• suitable for rapid piercing and cutting across different material thicknesses
• supports automatic focus adjustment during production
• helps maintain repeatable cutting performance in daily workshop use

compatibility:

• suitable for machines configured for raytools bm109 qbh pulse auto-focus cutting heads
• compatible with fiber laser systems that use qbh interface configuration
• always confirm your machine interface, optical setup and installation requirements before ordering

quality:

• designed for stable cutting performance and dependable daily operation
• protected lens structure helps reduce contamination of internal optics
• quick-access drawer-style lens mount simplifies maintenance
• airflow, cooling and focus-control design support reliable industrial use

included:

• 1 × raytools bm109 qbh pulse auto-focus cutting head

shipping:

• packed securely to help protect the cutting head during transport
• shipped based on current stock availability
