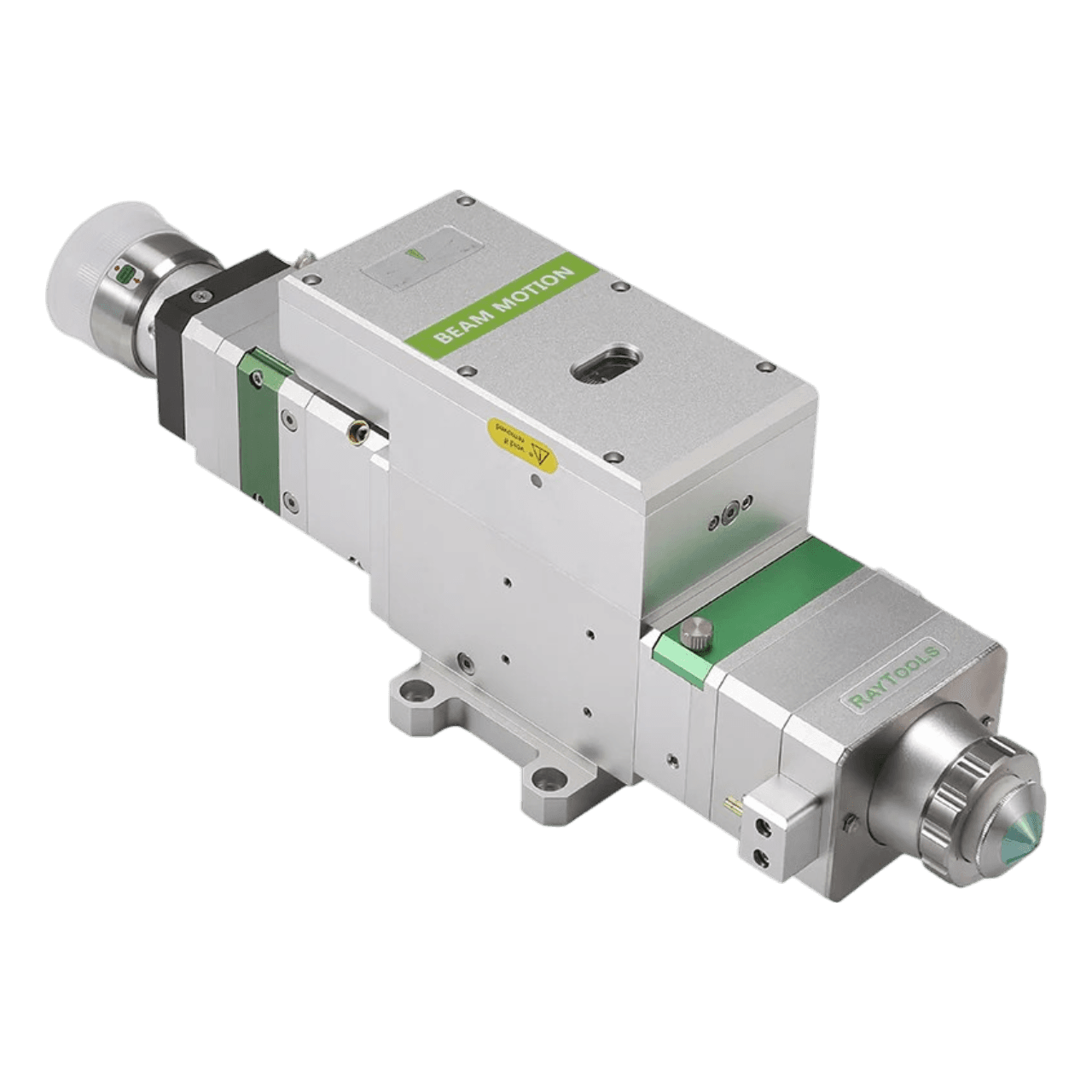

raytools bm110 qbh pulse auto-focus cutting head f155 for fiber laser up to 3.3kw

raytools bm110 qbh pulse auto-focus cutting head f155 for industrial fiber laser cutting applications up to 3.3 kw. designed for sheet metal processing and general metal fabrication, this bm110 cutting head uses a qbh interface, pulse auto-focus control and d30 optical configuration to support stable beam delivery, smooth airflow, reliable focus adjustment and consistent cutting performance across different material thicknesses. the protected optical structure, extra cover-glass protection above the collimator and drawer-type lens mount help improve durability, easier maintenance and dependable daily production performance.

commonly used on fiber laser cutting machines for thin to medium sheet applications where pulse auto-focus response, optical protection and repeatable cutting quality are important.

size:

• model: raytools bm110 qbh pulse auto-focus cutting head
• focus length: f155
• power rating: up to 3.3 kw
• fiber interface: qbh
• collimator focal length: d30-c100
• focusing lens: d30-f155
• upper protective window: d24.9 mm × 1.5 mm
• lower protective window: d27.9 mm × 4.1 mm

spec:

• qbh pulse auto-focus fiber laser cutting head for applications up to 3.3 kw
• optimized optical configuration with smooth and efficient airflow design
• automatic focusing range: +10 mm to -14 mm
• focusing accuracy: 0.05 mm
• equipped with d30 composite lens groups
• maximum focus-lens acceleration: 10 m/s²
• maximum focusing speed: 6 m/min
• extra cover glass above the collimator helps reduce dust-related lens damage
• drawer-type lens mount for quicker and easier protective-window replacement
• suitable for single-layer and double-layer nozzle styles
• nozzle caliber range: 1.0 mm to 5.0 mm
• water pipe size: φ6 mm
• assist gas connection: φ10 mm

material:

• industrial-grade metal body construction
• precision-machined internal structure for stable optical and mechanical performance
• protected design to help reduce contamination inside the optical path
• built for continuous industrial fiber laser cutting environments

use:

• fiber laser cutting of sheet metal and general industrial metal parts
• suitable for applications requiring automatic focus adjustment and stable cutting conditions
• supports repeatable cutting quality across different material thicknesses
• helps maintain efficient production in fabrication and metal-processing environments

compatibility:

• compatible with fiber laser systems using qbh interface configuration
• suitable for machines configured for raytools bm110 pulse auto-focus cutting heads
• available optical configurations may include f125, f155 and f200 depending on setup
• always confirm your machine interface, focal configuration and installation requirements before ordering

quality:

• designed for stable cutting performance and dependable daily operation
• airflow and optical configuration help support cutting efficiency and beam stability
• additional cover-glass protection helps protect internal optics from dust contamination
• quick-access drawer-style lens mount simplifies service and maintenance work

included:

• 1 × raytools bm110 qbh pulse auto-focus cutting head f155

shipping:

• packed securely to help protect the cutting head during transport
• shipped based on current stock availability
